Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8300653 Installation Instructions Appelez-nous -
1 4451052 Easy Use Guide (microwave) Appelez-nous -
1 3191638 Safer Cooking Tips Appelez-nous -
1 4450786 Cooking Guide (lable) Appelez-nous -
1 8300890 Use & Care Guide (microwave) Appelez-nous -
1 4456573 Use & Care Guide (oven) Appelez-nous -
1 4449264 Easy Set Guide Appelez-nous -
1 8302001 Tech Sheet (oven) Appelez-nous -
3 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 119.41

3 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 115.36

4 4448520 Bumper, Door Special Order $ 21.19

5 4455433 Trim, Side (lh White) Appelez-nous -
5 4455430 Trim, Side (rh Black) Special Order $ 67.89

5 4455434 Trim, Side (rh Biscuit) Appelez-nous -
5 4455432 Trim, Side (rh White) Appelez-nous -
5 4452083 Trim, Side (rh S. Steel) Appelez-nous -
5 4455431 Trim, Side (lh Black) Special Order $ 65.17

5 4455435 Trim, Side (lh Biscuit) Appelez-nous -
5 WP694091 Trim, Side (white)   (Replaces: 694091) Special Order $ 7.19

5 4452084 Trim, Side (lh S. Steel Screw) Appelez-nous -
5 WP8281236 Trim, Side (black)   (Replaces: 8281236) Special Order $ 7.56

6 4452490 Spacer, Foam Special Order $ 34.83

7 4455865 Top, Chassis Appelez-nous -
7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

9 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.02

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 116.63

10 4452163 Lens, Light Special Order $ 12.33

11 4449748 Screw Special Order $ 13.55

11 WP4448972 Oven Light Assy   (Replaces: 4448972) Special Order $ 109.40

12 WP4452164 Bulb, Light   (Replaces: 4452164) In-Stock Immediately $ 67.32

13 WP9752759 Relay   (Replaces: 9752759) In-Stock Immediately $ 191.59

13 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 7.75

14 9759060 Frame, Front Appelez-nous -
14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 WP4450118 Nut   (Replaces: 4450118) Special Order $ 7.95

15 W11675844 Gasket, Door   (Replaces: 4455382) In-Stock Immediately $ 69.75

19 4451478 Support, Insulation Special Order $ 54.10

20 4451605 Cap, Spacer Special Order $ 38.55

21 4450583 Rail, Side (right Side) Appelez-nous -
21 4450584 Rail, Side (left Side) Appelez-nous -
21 WP4448444 Rail, Side (grommet)   (Replaces: 4448444) Special Order $ 7.48

21 WP4449154 Rail, Side (screw)   (Replaces: 4449154) Special Order $ 7.56

25 W10782197 Side, Chassis (r.h. & L.h.)   (Replaces: 4455641) Special Order $ 143.51

25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 4452234 Back, Chassis Appelez-nous -
27 N/A Liner, Oven (not Serviceable) Appelez-nous -
29 WPW10131825 Sensor   (Replaces: 4455636) In-Stock Immediately $ 95.83

29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

30 4449845 Bracket-support Appelez-nous -
30 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

33 9760677 Deflector, Vent Special Order $ 155.46

34 8302592 Vent, Center Special Order $ 63.42

34 WP4450038 Screw   (Replaces: 4450038) Special Order $ 7.60

34 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 7.75

43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

43 9759713 Base, Chassis Special Order $ 100.19

49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 8.86

49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 142.92

51 WP3400805 Trim, Bottom (screw)   (Replaces: 3400805) Special Order $ 7.19

51 4455447 Trim, Bottom (biscuit) Appelez-nous -
51 4452152 Trim, Bottom (bracket, Vent Mounting) Special Order $ 33.50

51 4455445 Trim, Bottom (white) Appelez-nous -
51 4455147 Trim, Bottom (stainless Steel) Special Order $ 96.52

51 4455443 Trim, Bottom (black) Appelez-nous -
52 4451756 Chassis, Back Appelez-nous -
53 4452492 Insulation, Convection Top Appelez-nous -
54 4452337 Insulation Bottom Vent Appelez-nous -
54 4452491 Insulation, Convection Grill Appelez-nous -
54 N/A Following Parts Not Illustrated Insulation Appelez-nous -
54 W11684730 Insulation, Wrap   (Replaces: 4449316) Special Order $ 118.90

54 4450365 Insulation, Back Special Order $ 70.95


    View Diagram in Separate Window     Print Icon   Print Part List

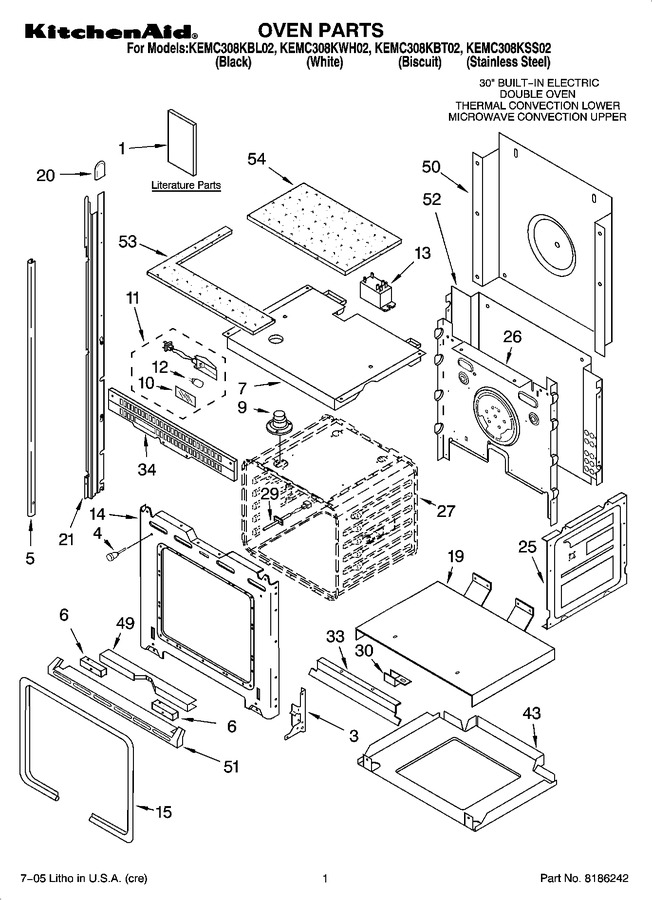

Diagram for KEMC308KBL02
