SELECT A DIAGRAM

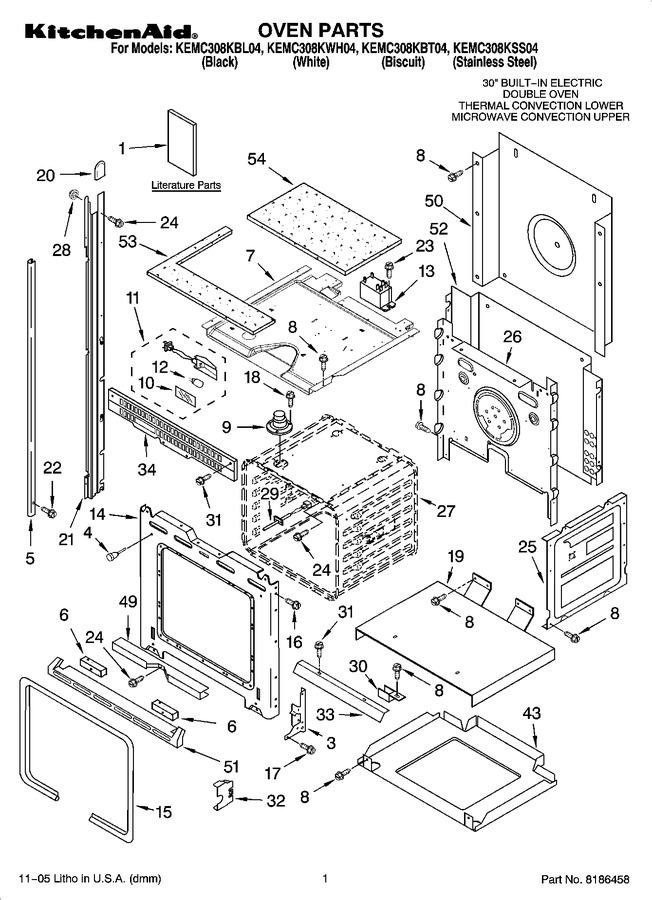

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4449264		Easy Set Guide Safer Cooking Tips		Appelez-nous	-
1	4451052		Easy Use Guide (microwave)		Appelez-nous	-
1	9759133		French		Appelez-nous	-
1	3191638		English		Appelez-nous	-
1	8300653		Installation Instructions		Appelez-nous	-
1	8304066		Use & Care Guide (oven)		Appelez-nous	-
1	8304067		Use & Care Guide (microwave)		Appelez-nous	-
1	4450786		Cooking Guide (lable)		Appelez-nous	-
1	8303852		Tech Sheet (oven)		Appelez-nous	-
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
5	4455430		Trim, Side (rh Black)				$ 67.89
5	4452084		Trim, Side (lh S. Steel)		Appelez-nous	-
5	4455433		Trim, Side (lh White)		Appelez-nous	-
5	4455435		Trim, Side (lh Biscuit)		Appelez-nous	-
5	4455431		Trim, Side (lh Black)				$ 65.17
5	4452083		Trim, Side (rh S. Steel)		Appelez-nous	-
5	4455432		Trim, Side (rh White)		Appelez-nous	-
5	4455434		Trim, Side (rh Biscuit)		Appelez-nous	-
6	4452490		Spacer, Foam				$ 34.83
7	8303099		Top Chassis				$ 70.97
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
11	4449748		Screw				$ 14.23
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 201.17
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
17	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 7.55
18	W11233072		Screw, 8-18 X 1/2   (Replaces: 3196176)			Immediately	$ 14.72
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	4450584		Rail, Side (left Side)		Appelez-nous	-
22	WP694091		Screw (white)   (Replaces: 694091)				$ 7.55
22	WP8281236		Screw (black)   (Replaces: 8281236)				$ 8.16
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4449845		Bracket-support		Appelez-nous	-
31	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
32	4452152		Bracket, Mounting				$ 35.18
33	9760677		Deflector, Vent				$ 155.46
34	8302592		Vent, Center				$ 63.42
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4455443		Trim, Bottom (black)		Appelez-nous	-
51	4455445		Trim, Bottom (white)		Appelez-nous	-
51	4455447		Trim, Bottom (biscuit)		Appelez-nous	-
51	4455147		Trim, Bottom (stainless Steel)				$ 96.52
52	4451756		Chassis, Back		Appelez-nous	-
53	4452492		Insulation, Convection Top		Appelez-nous	-
54	4452337		Insulation Bottom Vent		Appelez-nous	-
54	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
54	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
54	4450365		Insulation, Back				$ 70.95
54	4452491		Insulation, Convection Grill		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
