SELECT A DIAGRAM

01 - Oven Parts

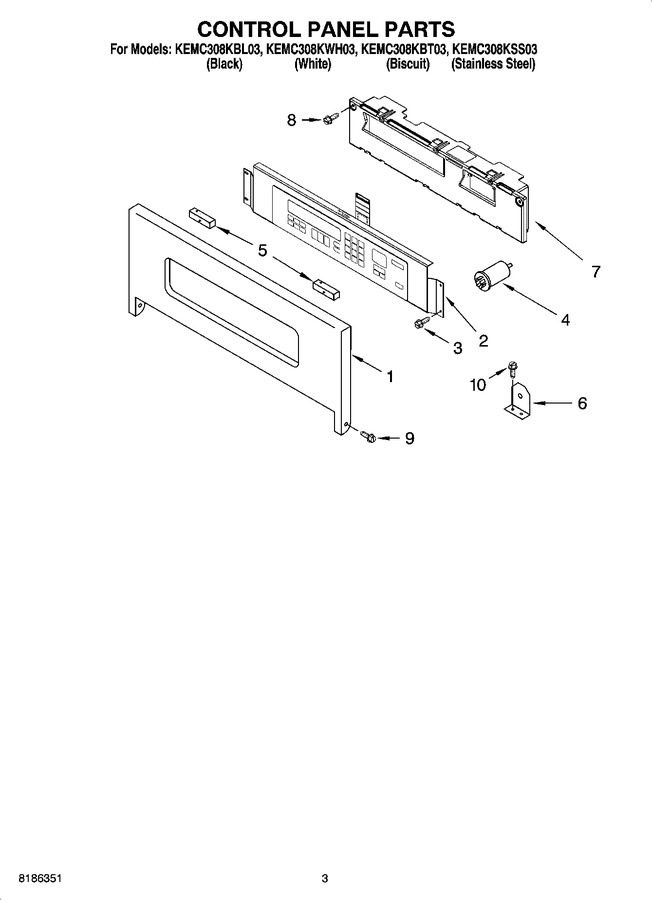

02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4452604		Panel, Control (black)		Appelez-nous	-
1	4452605		Panel, Control (white)		Appelez-nous	-
1	4452974		Panel, Control (biscuit)		Appelez-nous	-
1	4451791		Panel, Control Stainless Steel		Appelez-nous	-
2	8302674		Switch Membrane (white)		Appelez-nous	-
2	8302672		Switch Membrane (biscuit)		Appelez-nous	-
2	8302660		Switch Membrane (stainless Steel)		Appelez-nous	-
2	8302670		Switch Membrane (black)				$ 288.63
3	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
4	4451592		Filter				$ 35.89
5	4452260		Spacer, Foam		Appelez-nous	-
6	4451632		Bracket, Filter		Appelez-nous	-
7	8302346		Assy, Control				$ 530.26
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
10	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
