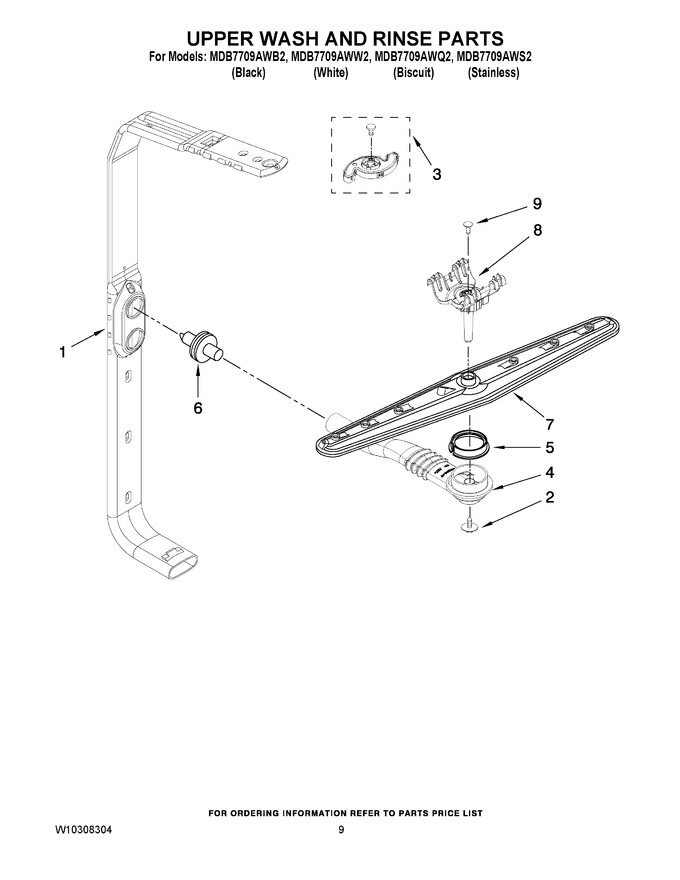

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10077863 | Feed Tube Silverware Zone (also Includes Item 3 & 11) (Replaces: 8559850) |
|
Immediately | $ 178.99 | ||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 7.99 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | W11676532 | Manifold (Replaces: W10240137) |
|
$ 43.75 | |||||
| 5 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.21 | ||||
| 6 | WPW10082831 | Nozzle-feed (Replaces: W10082831) |
|
Immediately | $ 45.94 | ||||
| 7 | WPW10082841 | Spray Arm (Replaces: W10082841) |
|
Immediately | $ 78.63 | ||||
| 8 | W10199808 | Mount, Spray Arm |
|
$ 30.79 | |||||
| 9 | WPW10118464 | Retainer, Push-in (Replaces: W10118464) |
|
$ 10.62 |
