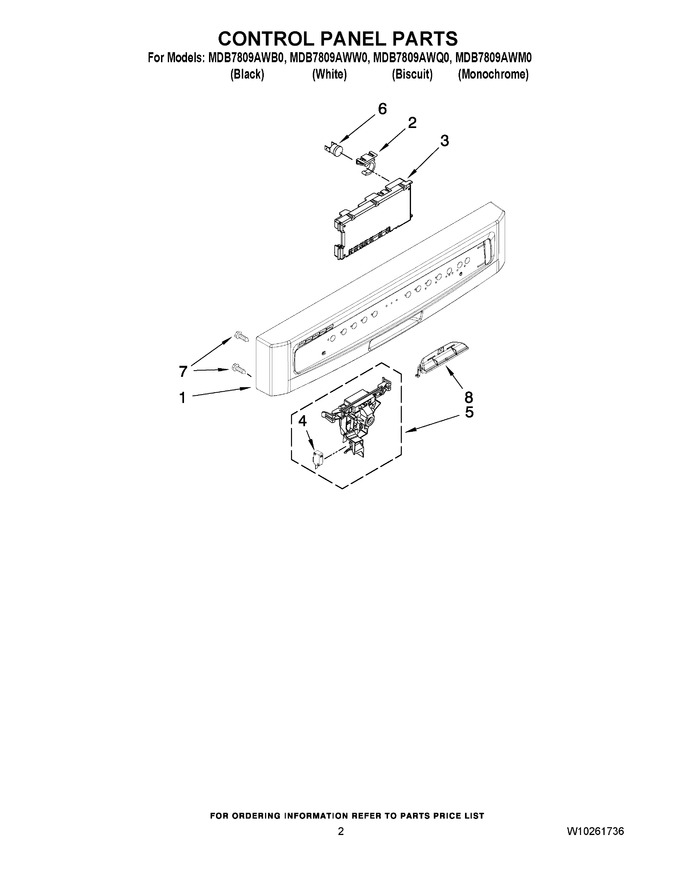

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10810424		Console Asm. (includes Active Overlay & Insert) (black)   (Replaces: W10199784)				$ 421.47
1	W10199785		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10810475		Console Asm. (includes Active Overlay & Insert) (biscuit)   (Replaces: W10199786)				$ 424.63
1	W10811147		Console Asm. (includes Active Overlay & Insert) (monochrome)   (Replaces: W10199787)				$ 420.91
2	8546546		Clip, Bi-metal				$ 7.82
3	WPW10285179		Control Electronic   (Replaces: W10208674)			Immediately	$ 316.68
4	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30
5	WPW10404412		Latch Assembly   (Replaces: W10077360)			Immediately	$ 85.50
6	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
7	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 8.20
8	W10205889		Handle, Latch (black)				$ 49.75
8	WPW10205890		Handle, Latch (white)   (Replaces: W10205890)				$ 126.51
8	W10859807		Handle, Latch (biscuit)   (Replaces: W10205891)				$ 135.21
