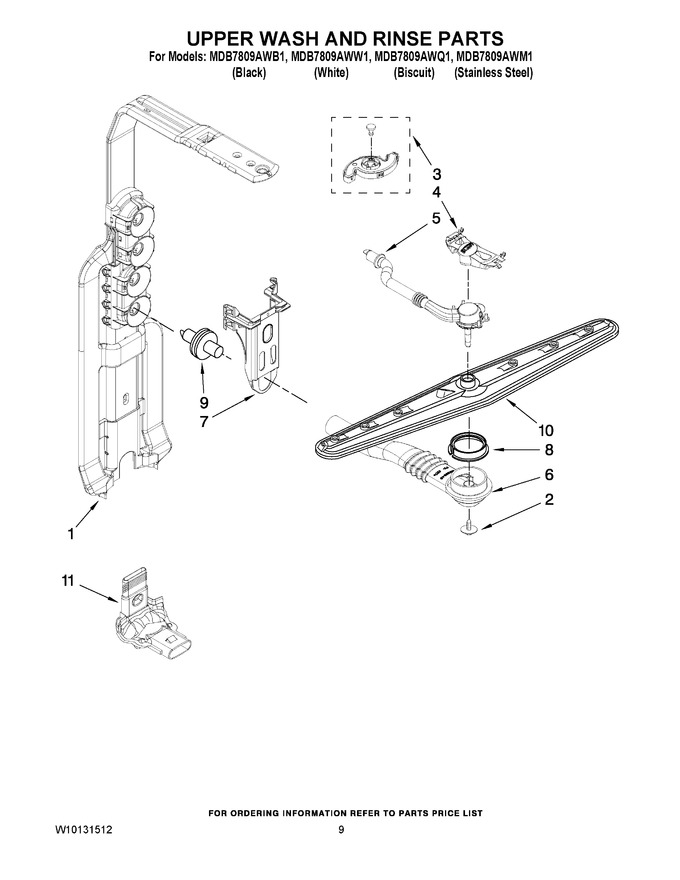

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10254862 | Feed Tube Silverware Zone (also Includes Item 3 & 11) |
|
$ 102.56 | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | W10199779 | Mount, Upper |
|
$ 98.20 | |||||
| 5 | W10199650 | Mount Assembly (includes No.4) |
|
$ 9.45 | |||||
| 6 | W10199649 | Manifold |
|
$ 66.77 | |||||
| 7 | W10199648 | Hanger |
|
$ 8.30 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | WPW10082831 | Nozzle-feed (Replaces: W10082831) |
|
Immediately | $ 48.24 | ||||
| 10 | WPW10082841 | Spray Arm (Replaces: W10082841) |
|
Immediately | $ 82.56 | ||||
| 11 | 8575244 | Valve Assembly, Manifold |
|
$ 83.35 |
