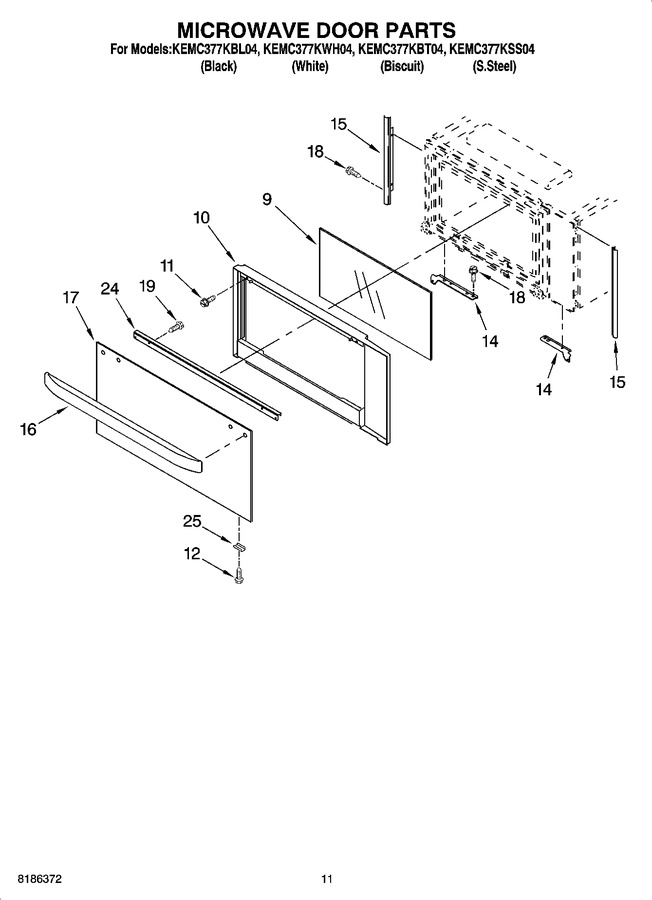

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 4448937 | Glass, Middle |
|
$ 66.02 | |||||
| 10 | 8303555 | Frame, Door |
|
$ 118.65 | |||||
| 11 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 12 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 14 | 4449141 | Bracket, Mounting (right Side) |
|
$ 31.33 | |||||
| 14 | 4449142 | Bracket, Mounting (left Side) |
|
$ 52.12 | |||||
| 15 | 4449083 | Filler, Side |
|
$ 36.44 | |||||
| 16 | 4452870 | Handle, Door (biscuit) |
|
- | |||||
| 16 | 4452500 | Handle, Door (black) |
|
- | |||||
| 16 | 4452501 | Handle, Door (white) |
|
- | |||||
| 16 | 4455850 | Handle, Door (s.steel) |
|
- | |||||
| 17 | 4452258 | Glass, Outer (s.steel) |
|
- | |||||
| 17 | 4452210 | Glass, Outer (black) |
|
- | |||||
| 17 | 4452788 | Glass, Outer (white) |
|
- | |||||
| 17 | 4452994 | Glass, Outer (biscuit) |
|
- | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 10.12 | |||||
| 24 | 4452330 | Bracket, Handle |
|
- | |||||
| 25 | 4451432 | Retainer, Glass-clip (s.steel) |
|
- | |||||
| 25 | 4450863 | Retainer, Glass-clip (black) |
|
- | |||||
| 25 | 4450864 | Retainer, Glass-clip (white) |
|
- | |||||
| 25 | 4452119 | Retainer, Glass-clip (biscuit) |
|
- | |||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| 4378950 | Filler Kit (bl) |
|
- | ||||||
| 4378951 | Filler Kit (wh) |
|
- | ||||||
| 4378952 | Filler Kit (al) |
|
- | ||||||
| 814381 | Kit, Pin Hinge |
|
$ 11.28 | ||||||
| WP4448950 | Screw, Installation (Replaces: 4448950) |
|
$ 8.16 | ||||||
| 8301909 | Harness, Latch |
|
$ 142.12 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 8303837 | Harness, Main Filter |
|
$ 21.21 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | |||||
| 8301922 | Harness, Main |
|
$ 144.88 | ||||||
| 4450831 | Ground (m/w) |
|
$ 7.43 | ||||||
| 4450800 | Screw |
|
$ 13.47 | ||||||
| 4450950 | Conduit, Combo |
|
- | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 8.30 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 59.89 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- |
