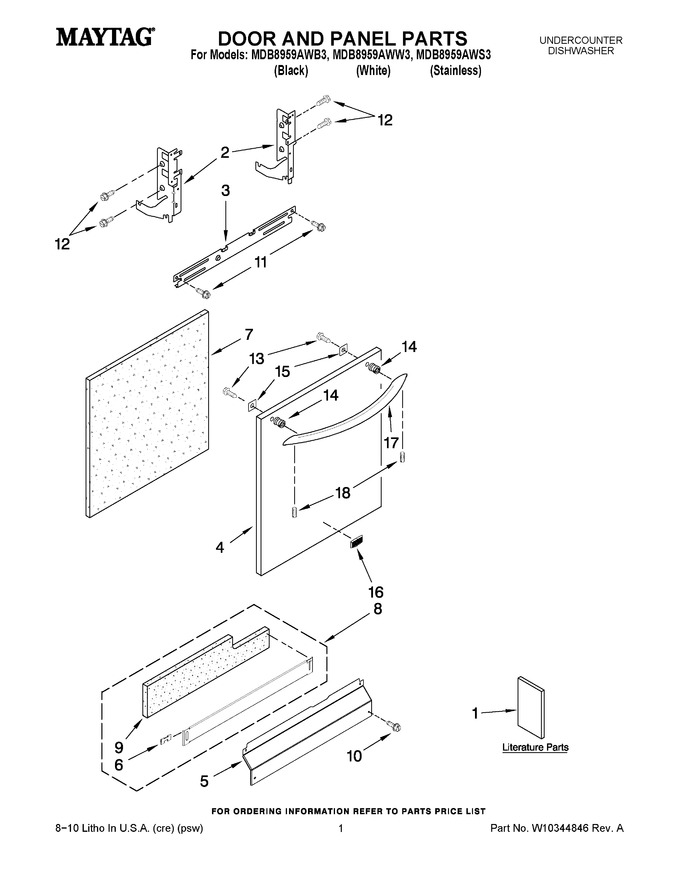

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10199658 | Guide, Use & Care English/french |
|
- | |||||
| 1 | W10284980 | Instructions, Installation |
|
- | |||||
| 1 | W10255067 | Energy Guide |
|
- | |||||
| 1 | W10199659 | Guide, Use & Care Spanish |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10199769 | Panel Front (stainless) |
|
$ 171.49 | |||||
| 4 | W10199768 | Panel Front (white) |
|
$ 138.50 | |||||
| 4 | W10199762 | Panel Front (black) |
|
$ 146.88 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 42.25 | ||||
| 6 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 | |||||
| 7 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 8 | W10871196 | Toe Panel (includes Item 9) (black) (Replaces: W10205336) |
|
$ 174.04 | |||||
| 9 | W10831329 | Insulation, Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 10 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W10123421 | Screw |
|
$ 12.83 | |||||
| 14 | WP8564951 | Stud (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 15 | W10142904 | Plate, Backing |
|
$ 50.57 | |||||
| 16 | W10199708 | Badge, Name |
|
$ 53.28 | |||||
| 17 | W10324627 | Handle (white) (Replaces: W10199634) |
|
$ 182.84 | |||||
| 17 | W10199636 | Handle (black) |
|
- | |||||
| 17 | W10199638 | Handle (stainless) |
|
- | |||||
| 18 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 9.37 |
