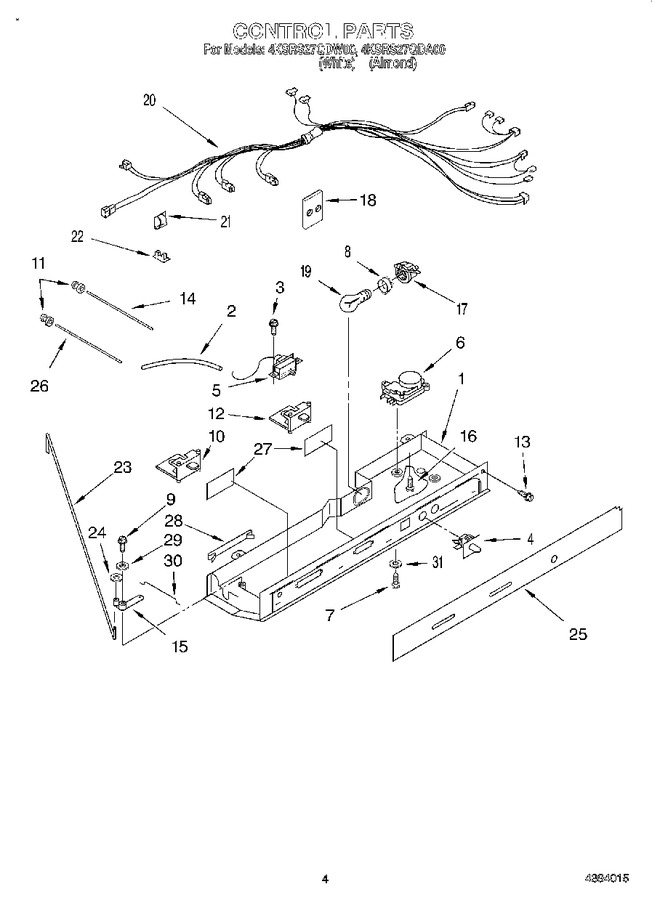

03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Air Flow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2181737		Control Box				$ 55.92
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 7.95
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	2175515		Thermostat		Appelez-nous	-
6	WP2166867		Defrost Timer (10 Hr.)   (Replaces: 2162057)				$ 178.79
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 82.61
9	627068		Screw				$ 12.12
10	2181741		Slide, Air Control				$ 90.49
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light Bar (rc)				$ 37.08
15	2161306		Arm, Pivot				$ 9.65
16	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	2172931		Heat Shield				$ 70.38
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
20	2149186		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	2161308		Connecting Arm (long)				$ 172.11
24	489391		Fastener, Push-on				$ 7.52
25	2175063		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2175513		Window		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	486632		Washer		Appelez-nous	-
