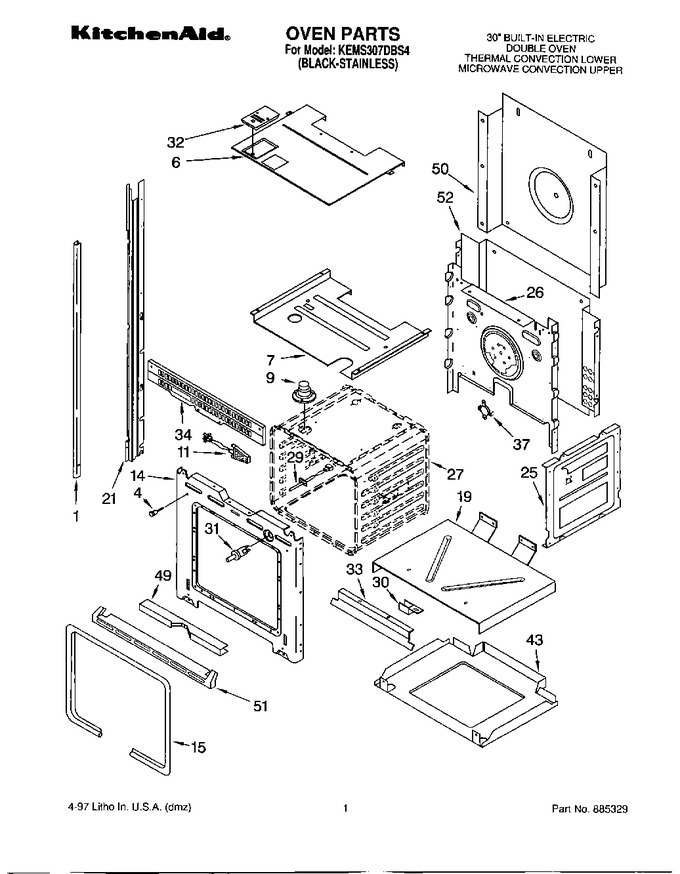

SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting


09 - Microwave Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450856		Trim, Side (rh Black)		Appelez-nous	-
1	4450859		Trim, Side (lh Black)		Appelez-nous	-
1	WP8281236		Trim, Side (screw)   (Replaces: 4449747)				$ 8.16
4	4448520		Bumper, Door				$ 22.25
6	4451054		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4451166		Partition		Appelez-nous	-
9	4449009		Tube, Vent		Appelez-nous	-
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
11	4449748		Screw				$ 14.23
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4450417		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4449372)			Immediately	$ 74.56
19	4450542		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	4450584		Rail, Side (left Side)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	4451169		Back, Module		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
30	4449845		Bracket-support		Appelez-nous	-
31	4450819		Switch, Door		Appelez-nous	-
32	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
32	4449369		Vent Box Assy		Appelez-nous	-
33	4450280		Deflector, Vent		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
34	4159465		Screw		Appelez-nous	-
34	4449074		Vent, Center		Appelez-nous	-
37	4450334		Thermostat (tod) (temp.) Spst		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450527		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	4450543		Cover, Back		Appelez-nous	-
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448461		Trim, Bottom		Appelez-nous	-
51	4159465		Screw		Appelez-nous	-
52	4450128		Insulation, Bottom		Appelez-nous	-
52	4450403		Chassis, Back		Appelez-nous	-
52	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
52	4450365		Insulation, Back				$ 70.95

    View Diagram in Separate Window       Print Part List
