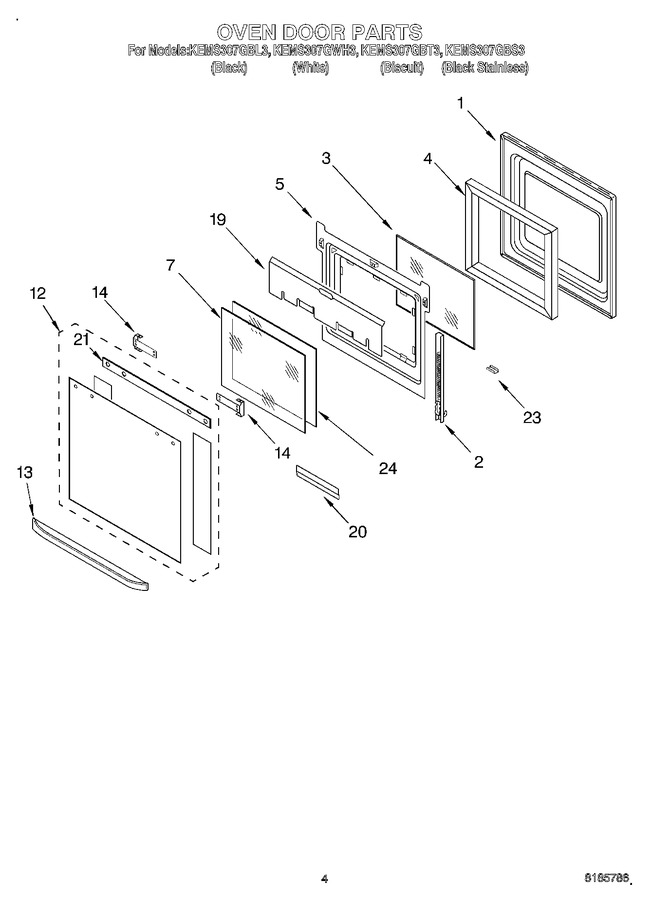

03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting


09 - Microwave Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 352.82
2	WP4455526		Hinge, Door (black Stainless Model)   (Replaces: 4455526)			Immediately	$ 79.50
2	WP4455525		Hinge, Door   (Replaces: 4455525)			Immediately	$ 77.73
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 203.18
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 180.73
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
5	4451671		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452477		Door Glass, Assy (black-stainless)		Appelez-nous	-
12	4452147		Door Glass, Assy (biscuit Model)		Appelez-nous	-
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448415		Handle, Door (white Model)		Appelez-nous	-
13	4448414		Door Handle (black)		Appelez-nous	-
13	4452129		Handle, Door (biscuit)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.10
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	4451668		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
21	4451674		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	WP3400832		Retainer, Glass-clip (screw)   (Replaces: 3400832)			Immediately	$ 7.75
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
23	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45
