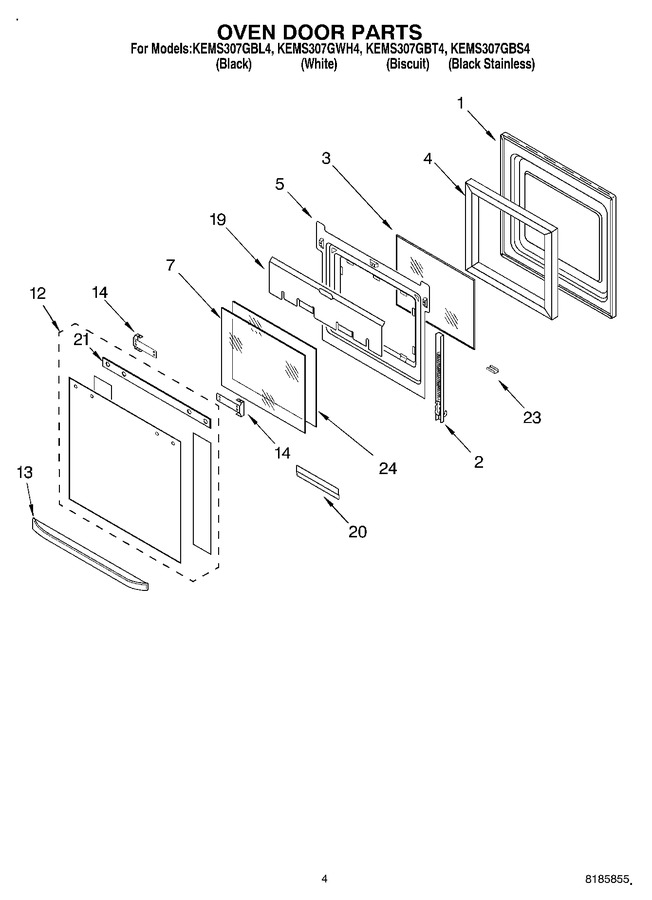

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 352.82
2	8300573		Hinge, Door (r.side)		Appelez-nous	-
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.19
2	WP9760572		Hinge, Door (l.side Black-stainless Models)   (Replaces: 8300572)				$ 106.63
2	WP9760571		Hinge, Door (r.side)   (Replaces: 8300571)			Immediately	$ 109.06
2	WP9760574		Hinge, Door (l.side)   (Replaces: 8300574)			Immediately	$ 67.07
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 203.18
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 180.73
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
5	8300778		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452477		Door Glass, Assy (black-stainless)		Appelez-nous	-
12	4452147		Door Glass, Assy (biscuit Model)		Appelez-nous	-
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448414		Door Handle (black)		Appelez-nous	-
13	4448415		Handle, Door (white Model)		Appelez-nous	-
13	4452129		Handle, Door (biscuit)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.10
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	4451668		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
21	8300820		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
23	WP3400832		Retainer, Glass-clip (screw)   (Replaces: 3400832)			Immediately	$ 7.75
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45
