SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting


09 - Microwave Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door   (Replaces: 4455525)			Immediately	$ 88.29
2	WP4455526		Hinge, Door (stainless Steel)   (Replaces: 4455526)			Immediately	$ 90.34
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	4451671		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	W10401225		Door Glass, Assy (s.steel Model)   (Replaces: 4452316)				$ 321.60
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448415		Handle, Door (white Model)		Appelez-nous	-
13	4448414		Door Handle (black)		Appelez-nous	-
13	4455851		Door Handle (stainless Steel)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4455804		Bracket, Handle (stainless Steel) (left Hand)				$ 25.95
14	4450813		Bracket, Handle				$ 24.20
14	4455803		Bracket, Handle (stainless Steel) (right Hand)				$ 30.70
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451668		Retainer, Glass		Appelez-nous	-
21	4451674		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45

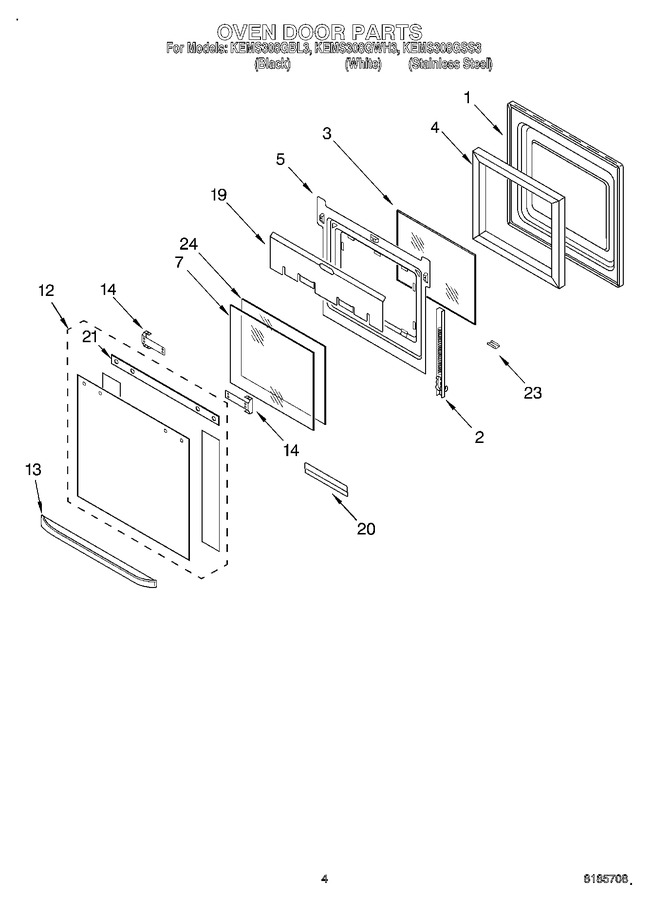

    View Diagram in Separate Window       Print Part List
