SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

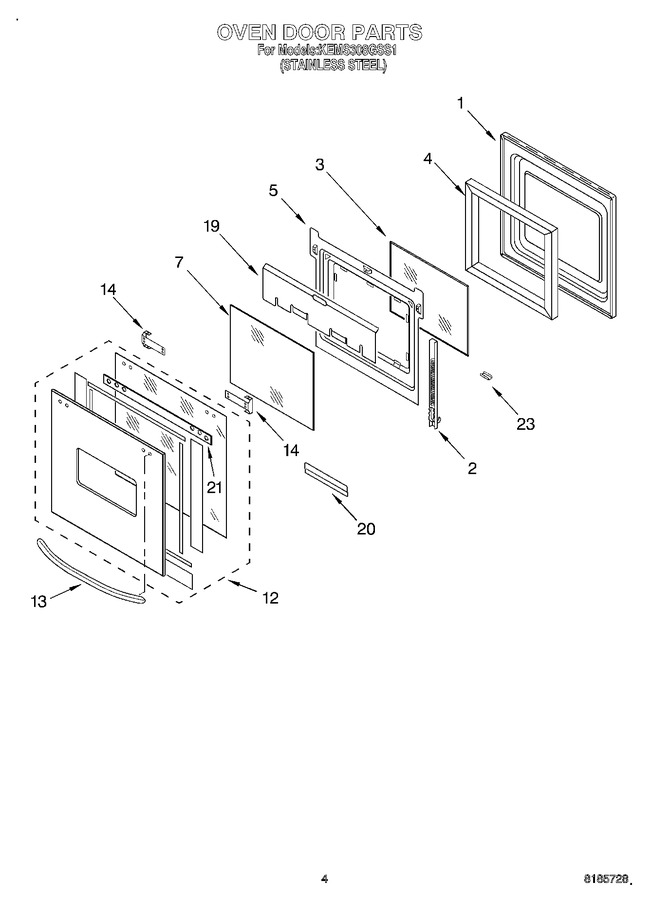

03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting


09 - Microwave Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
2	WP4455526		Hinge, Door   (Replaces: 4452343)			Immediately	$ 79.50
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 203.18
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 180.73
5	4451671		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
12	W10401225		Door Glass, Assy   (Replaces: 4452316)				$ 321.60
13	4455851		Door Handle		Appelez-nous	-
14	4452959		Bracket, Handle (right Hand)		Appelez-nous	-
14	4452960		Bracket, Handle (left Hand)		Appelez-nous	-
14	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 9.44
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	4451668		Retainer, Glass		Appelez-nous	-
21	4452326		Seal, Door Top		Appelez-nous	-
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
23	4451432		Retainer, Glass Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
