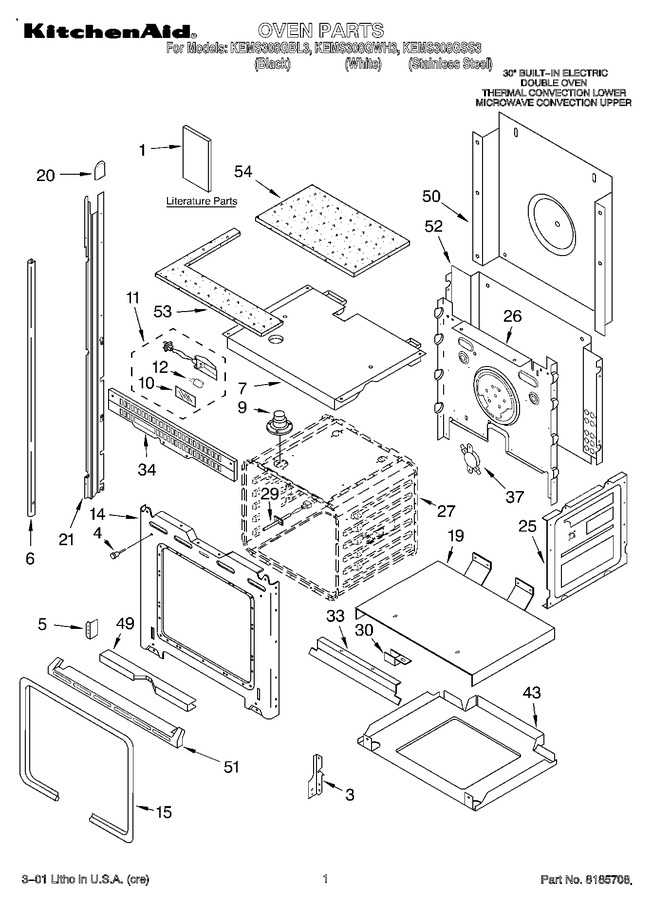

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450412		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452300		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4452614		Literature Parts (use & Care Guide (microwave))		Appelez-nous	-
1	LIT4451052		Literature Parts (easy Use Guide (microwave))		Appelez-nous	-
1	LIT4450786		Literature Parts (cooking Guide (lable))		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT4452295		Literature Parts (tech Sheet (oven))		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	W11233072		Literature Parts (screw)   (Replaces: 3196176)			Immediately	$ 14.02
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
3	4455520		Reciever, Hinge (left Hand)		Appelez-nous	-
3	4455521		Reciever, Hinge (right Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 21.19
5	4455510		Bracket, Support		Appelez-nous	-
6	4452083		Trim, Side (rh S. Steel)		Appelez-nous	-
6	4450860		Trim, Side (lh White)		Appelez-nous	-
6	4452084		Trim, Side (lh S. Steel)		Appelez-nous	-
6	4449041		Trim, Side (screw White)				$ 5.27
6	WP8281236		Trim, Side (screw Black)   (Replaces: 4449747)				$ 7.56
6	4450856		Trim, Side (rh Black)		Appelez-nous	-
6	4450857		Trim, Side (rh White)		Appelez-nous	-
6	4450859		Trim, Side (lh Black)		Appelez-nous	-
7	4455286		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 116.63
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 109.40
11	4449748		Screw				$ 13.55
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 67.32
14	4455612		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 69.75
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 7.56
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.48
21	4450584		Rail, Side (left Side)		Appelez-nous	-
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 143.51
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
26	4452234		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
30	4449845		Bracket-support		Appelez-nous	-
33	4451619		Deflector, Vent		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 7.60
34	4451667		Vent, Center		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.86
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 142.92
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4448477		Trim, Bottom (black)				$ 71.44
51	4448478		Trim, Bottom (white)		Appelez-nous	-
51	4452481		Trim, Bottom (stainless Steel)		Appelez-nous	-
52	4451756		Chassis, Back		Appelez-nous	-
53	4452492		Insulation, Convection Top		Appelez-nous	-
54	4450365		Insulation, Back				$ 70.95
54	4452491		Insulation, Convection Grill		Appelez-nous	-
54	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 118.90
