Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10185205 Tech Sheet (english) Appelez-nous -
1 W10162223 Use & Care Guide (combo, Lower) Appelez-nous -
1 W10162181 Use & Care Guide (microwave) Appelez-nous -
1 W10185206 Tech Sheet (french) Appelez-nous -
1 8304338 Easy Set Guide (oven) Appelez-nous -
1 8304375 Easy Set Guide (microwave) Appelez-nous -
1 9762761 Safer Cooking Tips (english) Appelez-nous -
1 W10065852 Safer Cooking Tips (french) Appelez-nous -
1 8304337 Installation Instructions Appelez-nous -
2 W10153090 Bracket, Base Special Order $ 35.56

3 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 131.74

3 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 127.70

4 W10105790 Bumper, Door (2) Special Order $ 7.41

5 8303829 Exhaust,vent Slope Special Order $ 7.99

6 W10181196 Divider, Center Vent Appelez-nous -
7 W10204470 Top Chassis Appelez-nous -
8 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 122.46

10 W10169756 Lens, Light Special Order $ 42.19

11 WPW10307114 Oven Light Assembly   (Replaces: W10009940) In-Stock Immediately $ 116.01

12 WPW10169757 Bulb, Light   (Replaces: W10169757) In-Stock Immediately $ 47.38

13 WP3400832 Screw (2)   (Replaces: 3400832) In-Stock Immediately $ 8.18

14 8304627 Frame, Front Appelez-nous -
15 WP8304493 Gasket, Door   (Replaces: 8304493) Special Order $ 187.39

16 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.72

17 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

18 W10142289 Screw   (Replaces: 3400893) Special Order $ 9.61

19 4451478 Support, Insulation Special Order $ 54.10

20 WP4450038 Screw (2)   (Replaces: 4450038) Special Order $ 8.30

21 8303680WH Mounting Rail, Side Left (white) Appelez-nous -
21 8303679BL Mounting Rail, Side Right (black) Special Order $ 48.29

21 8303679WH Mounting Rail, Side Right (white) Appelez-nous -
21 8303680BL Mounting Rail, Side Left (black) Special Order $ 35.54

22 W11029221 Latch, Motorized   (Replaces: 8303692) In-Stock Immediately $ 327.65

23 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.55

24 4449748 Screw Special Order $ 14.23

25 W10782197 Side, Chassis   (Replaces: 4455641) Special Order $ 150.69

26 8304303 Back, Chassis Appelez-nous -
28 WP8304452 Thermal Fuse   (Replaces: 8304452) In-Stock Immediately $ 116.40

29 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 95.83

30 8303685 Vent, Center Special Order $ 61.46

31 8303516 Base, Chassis Appelez-nous -
32 8304478 Retainer, Gasket Appelez-nous -
33 8303517 Cover, Back Special Order $ 73.96

34 8303705WH Trim, Bottom Vent (white) Special Order $ 66.38

34 8303705BL Trim, Bottom Vent (black) Special Order $ 67.31

34 W10165443 Trim, Bottom Vent (stainless) Appelez-nous -
35 WP4448444 Grommet, Mounting Rail   (Replaces: 4448444) Special Order $ 7.85

36 W10169348 Bracket,thermostat Special Order $ 8.32

8303967 Insulation, Back Special Order $ 55.31

8303965 Insulation, Wrap Special Order $ 54.21


    View Diagram in Separate Window     Print Icon   Print Part List

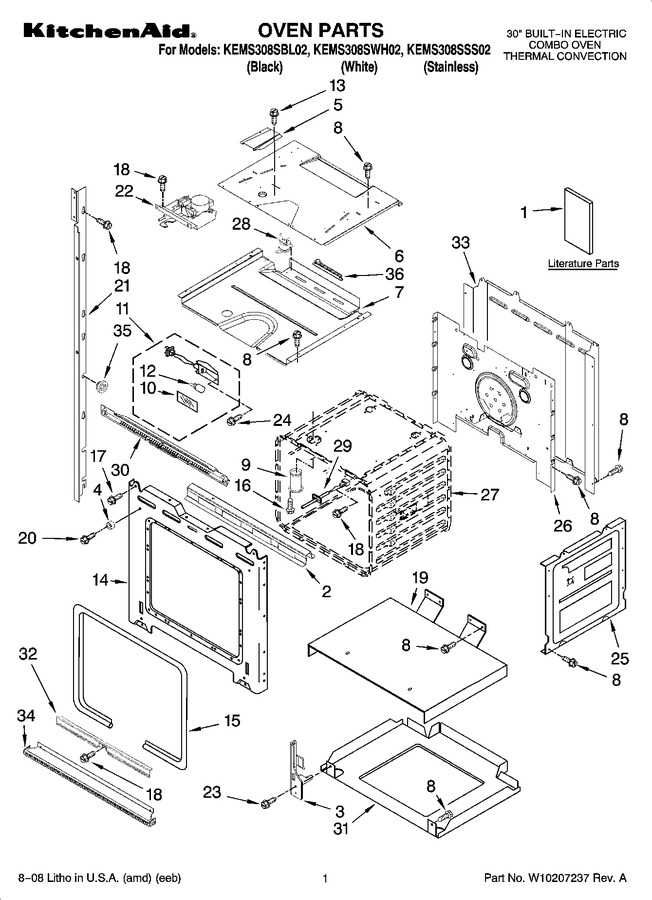

Diagram for KEMS308SWH02
