Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4450856 Trim, Side (rh Black) Appelez-nous -
1 4450857 Trim, Side (rh White) Appelez-nous -
1 4450858 Trim, Side (rh Almond) Appelez-nous -
1 4452124 Trim, Side (rh Biscuit) Appelez-nous -
1 4450859 Trim, Side (lh Black) Appelez-nous -
1 4450860 Trim, Side (lh White) Appelez-nous -
1 4450861 Trim, Side (lh Almond) Appelez-nous -
1 4452125 Trim, Side (lh Biscuit) Appelez-nous -
1 WP8281236 Trim, Side (screw Black)   (Replaces: 4449747) Special Order $ 7.56

1 4449041 Trim, Side (screw White) Special Order $ 5.27

4 4448520 Bumper, Door Special Order $ 21.19

7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

7 4452236 Top, Chassis Appelez-nous -
9 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 116.63

10 4452163 Lens, Light Special Order $ 12.33

11 4449748 Screw Special Order $ 13.55

11 WP4448972 Oven Light Assy   (Replaces: 4448972) Special Order $ 109.40

12 WP4452164 Bulb, Light   (Replaces: 4452164) In-Stock Immediately $ 67.32

14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 4451739 Frame, Front Appelez-nous -
15 WP4455381 Gasket, Door   (Replaces: 4449371) Special Order $ 176.77

19 4451477 Support, Insulation Appelez-nous -
19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

20 4451605 Cap, Spacer Special Order $ 38.55

21 4450583 Rail, Side (right Side) Appelez-nous -
21 4450584 Rail, Side (left Side) Appelez-nous -
21 WP4448444 Rail, Side (grommet)   (Replaces: 4448444) Special Order $ 7.48

21 WP4449154 Rail, Side (screw)   (Replaces: 4449154) Special Order $ 7.56

25 4454691 Side, Chassis (r.h. & L.h.) Appelez-nous -
25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 4452233 Back, Chassis Appelez-nous -
29 4451665 Sensor Special Order $ 107.99

29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

30 4449845 Bracket-support Appelez-nous -
30 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

33 4450280 Deflector, Vent Appelez-nous -
34 4451666 Vent, Center Appelez-nous -
34 4159465 Screw Appelez-nous -
34 WP4450038 Screw   (Replaces: 4450038) Special Order $ 7.60

37 WP9759243 Thermostat (tod) (temp.) Spst   (Replaces: 4451442) In-Stock Immediately $ 55.44

37 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

43 4451397 Base, Chassis Appelez-nous -
49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 8.86

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 142.92

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

51 4448475 Trim, Bottom (black) Appelez-nous -
51 4448861 Trim, Bottom (almond) Appelez-nous -
51 4452414 Trim, Bottom (biscuit Model) Appelez-nous -
51 4159465 Trim, Bottom (screw) Appelez-nous -
51 4448476 Trim, Bottom (white Model) Appelez-nous -
52 4451755 Chassis, Back Appelez-nous -
52 4450364 Insulation, Back Appelez-nous -
52 4449315 Insulation, Wrap Special Order $ 64.81


    View Diagram in Separate Window     Print Icon   Print Part List

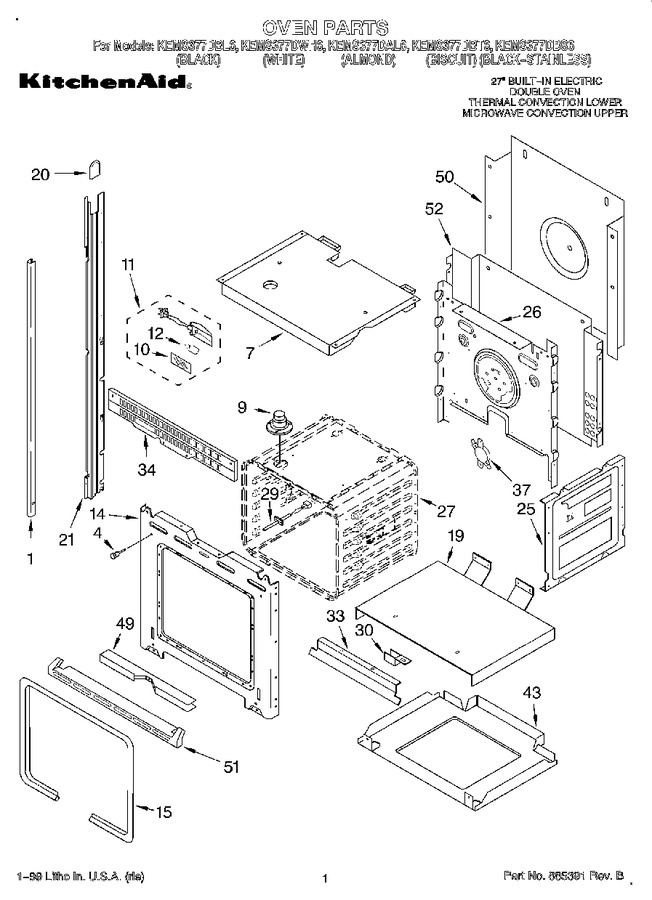

Diagram for KEMS377DAL6
