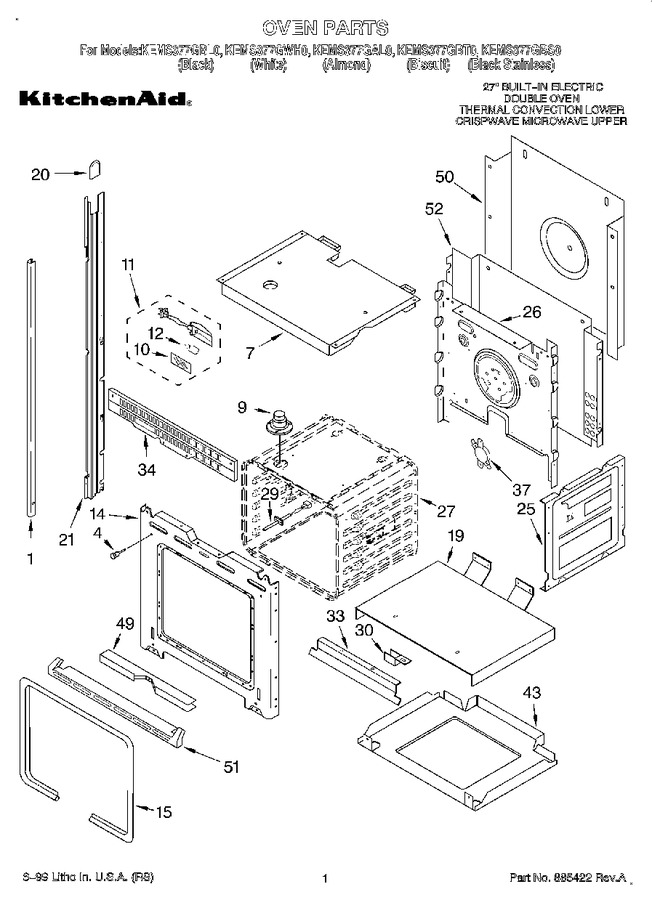

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4449041		Trim, Side (screw White)				$ 5.27
1	4450857		Trim, Side (rh White)		Appelez-nous	-
1	4450858		Trim, Side (rh Almond)		Appelez-nous	-
1	4452124		Trim, Side (rh Biscuit)		Appelez-nous	-
1	4450859		Trim, Side (lh Black)		Appelez-nous	-
1	4450860		Trim, Side (lh White)		Appelez-nous	-
1	4450861		Trim, Side (lh Almond)		Appelez-nous	-
1	4452125		Trim, Side (lh Biscuit)		Appelez-nous	-
1	WP8281236		Trim, Side (screw Black)   (Replaces: 4449747)				$ 8.16
1	4450856		Trim, Side (rh Black)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4452236		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451739		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4449371)				$ 185.61
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	4451665		Sensor				$ 107.99
30	4449845		Bracket-support		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	4450280		Deflector, Vent		Appelez-nous	-
34	4451666		Vent, Center		Appelez-nous	-
34	4159465		Screw		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4451397		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4452414		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4448861		Trim, Bottom (almond)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4448475		Trim, Bottom (black)		Appelez-nous	-
52	4450364		Insulation, Back		Appelez-nous	-
52	4449315		Insulation, Wrap				$ 64.81
52	4451755		Chassis, Back		Appelez-nous	-
