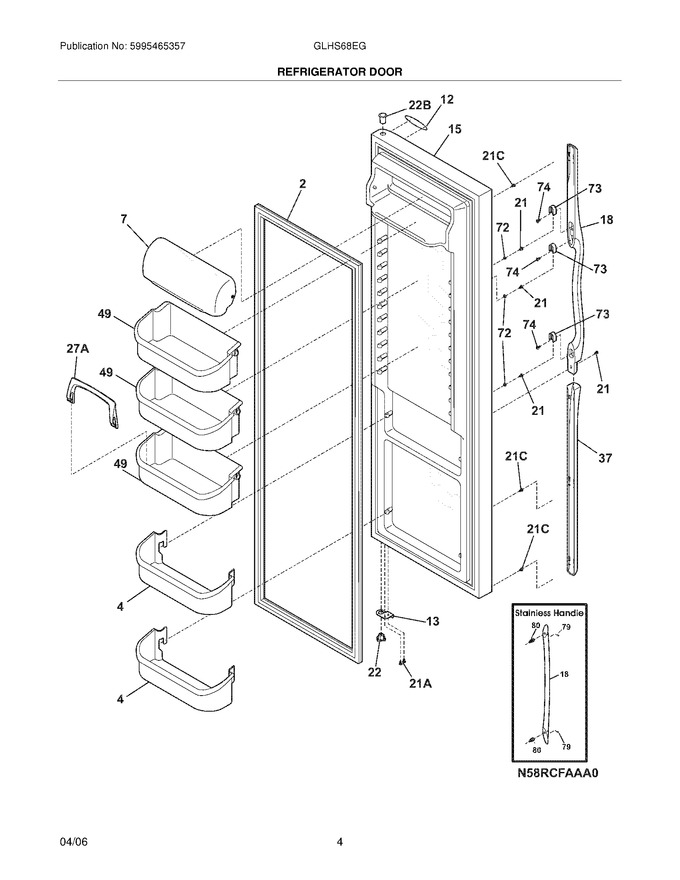

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323002 | Bin-door,pseudo ,bottom |
|
Immediately | $ 74.68 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 240449708 | Nameplate |
|
$ 38.48 | |||||
| 13 | 240581901 | Door Stop,white ,refr |
|
$ 48.83 | |||||
| 15 | 241534573 | Door-refr,white ,complete Assy |
|
$ 341.70 | |||||
| 18 | 240536809 | Handle-door,white |
|
$ 139.30 | |||||
| 22 | 240328201 | Bearing-hinge(ref),closer |
|
Immediately | $ 19.69 | ||||
| 49 | 240356402 | Bin-door,gallon (Replaces: 240430311) |
|
Immediately | $ 118.70 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 20.67 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 13.20 | |||||
| 22B | 240328402 | Bearing-hinge,natural ,upper |
|
$ 22.05 | |||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 21.26 | |||||
| F2 | 241786013 | Gasket-refr Door,white ,magnetic (Replaces: 241674801) |
|
Immediately | $ 106.55 |
