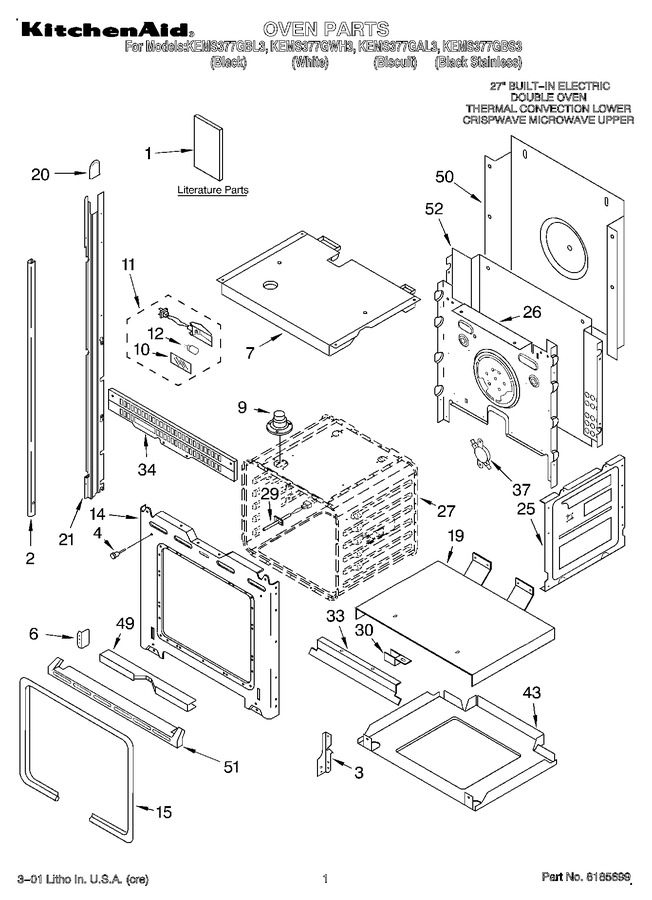

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4449264		Literature Parts (easy Set Guide (oven))		Appelez-nous	-
1	LIT4451052		Literature Parts (guide, Easy Use (microwave))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450412		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452300		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4452614		Literature Parts (use & Care Guide (microwave))		Appelez-nous	-
1	LIT4450786		Literature Parts (cooking Guide (label))		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT4452295		Literature Parts (tech Sheet (oven))		Appelez-nous	-
2	WP8281236		Trim, Side (screw Black)   (Replaces: 4449747)				$ 8.16
2	4450856		Trim, Side (rh Black)		Appelez-nous	-
2	4450857		Trim, Side (rh White)		Appelez-nous	-
2	4452124		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450859		Trim, Side (lh Black)		Appelez-nous	-
2	4450860		Trim, Side (lh White)		Appelez-nous	-
2	4452125		Trim, Side (lh Biscuit)		Appelez-nous	-
2	4449041		Trim, Side (screw White)				$ 5.27
3	4455521		Reciever, Hinge (right Hand)		Appelez-nous	-
3	4455520		Reciever, Hinge (left Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
6	4455510		Bracket, Support		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455285		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	4455611		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	4450583		Rail, Side (right Side)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4449845		Bracket-support		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	4450280		Deflector, Vent		Appelez-nous	-
34	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
34	4451666		Vent, Center		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448475		Trim, Bottom (black)		Appelez-nous	-
51	4452414		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
52	4450364		Insulation, Back		Appelez-nous	-
52	4451755		Chassis, Back		Appelez-nous	-
52	4449315		Insulation, Wrap				$ 64.81
