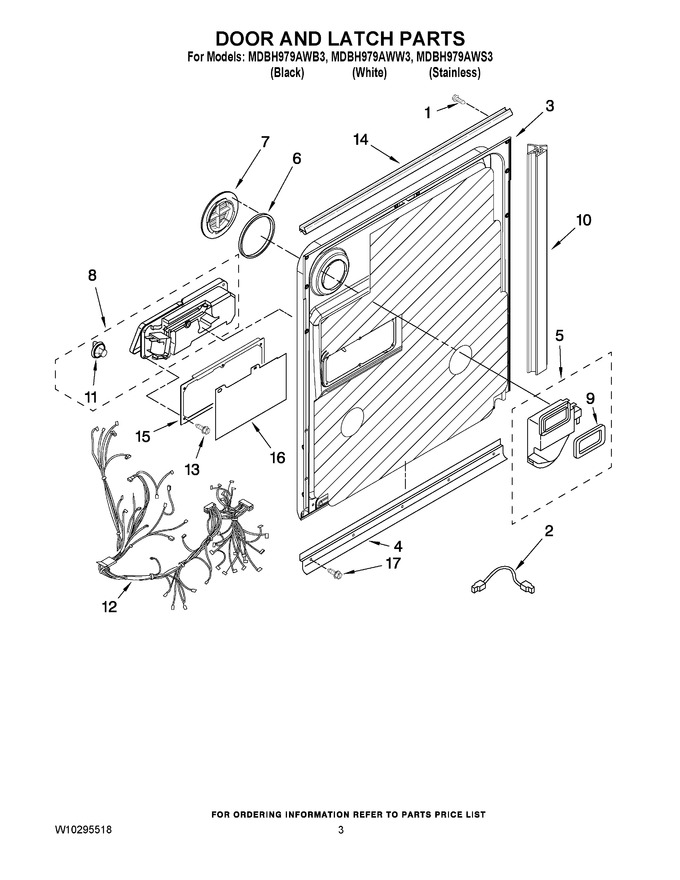

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw, Door (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 2 | 8545608 | Harness, Vent Motor |
|
$ 152.37 | |||||
| 3 | W10056249 | Inner Door Mastic Assembly |
|
$ 173.12 | |||||
| 4 | WP8268937 | Inlet, Air (Replaces: 8268937) |
|
Immediately | $ 58.29 | ||||
| 5 | WPW10164259 | Vent Assembly (Replaces: W10164259) |
|
$ 208.90 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WP8545536 | Deflector, Vent (also Order Item 6) (Replaces: 8545536) |
|
$ 83.29 | |||||
| 8 | WPW10199696 | Dispenser, Assembly (Replaces: W10199696) |
|
$ 174.06 | |||||
| 9 | WP8269258 | Seal, Front (Replaces: 8269258) |
|
Immediately | $ 96.86 | ||||
| 10 | 8574160 | Seal, Side |
|
$ 93.28 | |||||
| 11 | WPW10199683 | Cap, Rinse Aid (Replaces: W10199683) |
|
$ 28.13 | |||||
| 12 | WPW10413098 | Wiring Harness Main (Replaces: W10078201) |
|
$ 299.03 | |||||
| 13 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 14 | WP8535660 | Seal, Console/door (Replaces: 8535660) |
|
$ 186.01 | |||||
| 15 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 37.79 | |||||
| 16 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 113.15 | |||||
| 17 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 |
