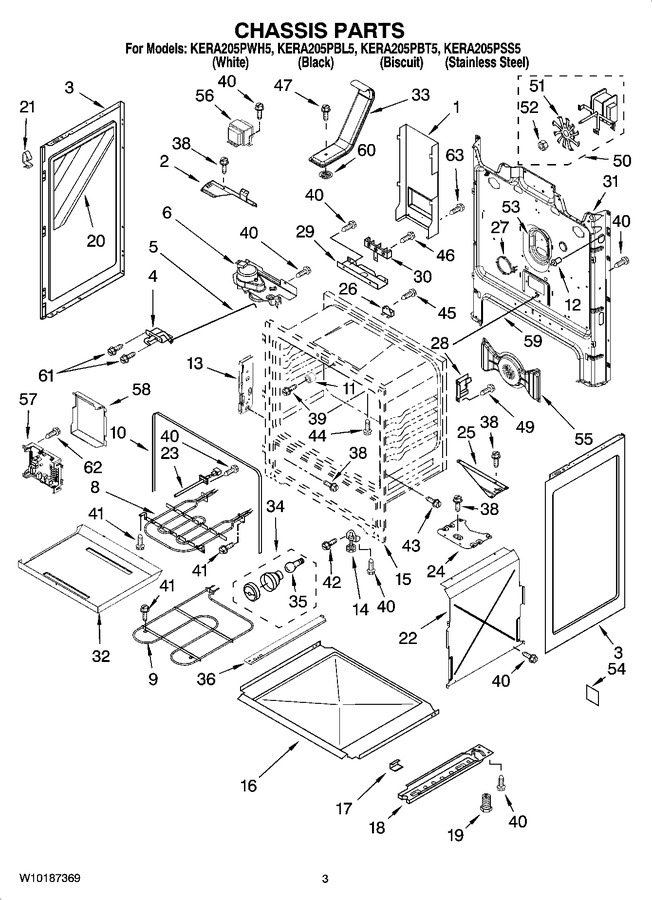

03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757972 | Cover, Box |
|
- | |||||
| 2 | 8273905 | Support, Corner Lr |
|
- | |||||
| 3 | W10162246 | Panel, Side (2) (biscuit-textured) (Replaces: 8272519) |
|
$ 205.91 | |||||
| 3 | W11730303 | Panel, Side (2) (black-textured) (Replaces: 8053832) |
|
Immediately | $ 178.50 | ||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 148.71 | |||||
| 4 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 256.36 | |||||
| 5 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 6 | WPW10107820 | Latch Asm, Rear (Replaces: W10107820) |
|
$ 309.55 | |||||
| 8 | WPW10017516 | Element, Broil (Replaces: W10017516) |
|
Immediately | $ 198.77 | ||||
| 9 | WP9755770 | Element, Bake Hidden (Replaces: 9755770) |
|
Immediately | $ 117.66 | ||||
| 10 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 11 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 12 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 13 | W10647259 | Brkt-hinge (Replaces: 9760407) |
|
Immediately | $ 9.32 | ||||
| 14 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 16 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 17 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 18 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 62.66 | |||||
| 19 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 20 | 9761490 | Insulation |
|
- | |||||
| 21 | 9761512 | Clip, Mounting |
|
- | |||||
| 22 | W10450380 | Retainer, Side (2) (Replaces: 9758238) |
|
- | |||||
| 23 | WPW10181986 | Sensor, Oven (Replaces: W10131826) |
|
Immediately | $ 106.83 | ||||
| 24 | 3195736 | Support, Front (2) |
|
- | |||||
| 25 | 3195987 | Support, Corner Rr |
|
- | |||||
| 26 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 27 | WP9760769 | Element, Convection (Replaces: 9758525) |
|
Immediately | $ 337.88 | ||||
| 28 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 17.69 | |||||
| 29 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 30 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 8.63 | |||||
| 30 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 31 | 9757029 | Back, Main |
|
- | |||||
| 32 | 9755769 | Tray, Hidden Bake Element |
|
- | |||||
| 33 | WPW10134285 | Vent Tube (Replaces: 9761300) |
|
Immediately | $ 263.00 | ||||
| 34 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 35 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 36 | 9755771 | Cover, Tray |
|
- | |||||
| 38 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 39 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 40 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 41 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 42 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 43 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 8.24 | |||||
| 44 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 45 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 46 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 47 | WP489491 | Screw (Replaces: 3196566) |
|
$ 7.30 | |||||
| 49 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 50 | WP9758925 | Fan Motor, Cnvctn (Replaces: 9758925) |
|
$ 334.93 | |||||
| 51 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 52 | 4452227 | Nut |
|
$ 33.98 | |||||
| 53 | 9755776 | Cover, Convection Fan |
|
- | |||||
| 54 | W10646923 | Card, Insulator (Replaces: 9759689) |
|
$ 19.57 | |||||
| 55 | 9757088 | Baffle, Convection |
|
$ 108.83 | |||||
| 56 | 9756518 | Transformer |
|
$ 117.48 | |||||
| 57 | 9761595 | Appliance Manager |
|
$ 373.76 | |||||
| 58 | 9757970 | Cover |
|
- | |||||
| 59 | 9757239 | Rod - Dr Switch |
|
$ 96.37 | |||||
| 60 | 9761301 | Screen, Catalyst |
|
$ 147.90 | |||||
| 61 | W11169708 | Screw (2) (Replaces: 3196560) |
|
$ 13.36 | |||||
| 62 | 8533930 | Screw |
|
- | |||||
| 63 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9755772 | Insulation, Back |
|
- | ||||||
| 8053915 | Insulation, Vent (Replaces: 8272613) |
|
$ 13.06 | ||||||
| WPW10208653 | Insulation, Wrap (Replaces: 8272616) |
|
Immediately | $ 55.47 |
