SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts


04 - Door And Drawer Parts


05 - Internal Oven Parts

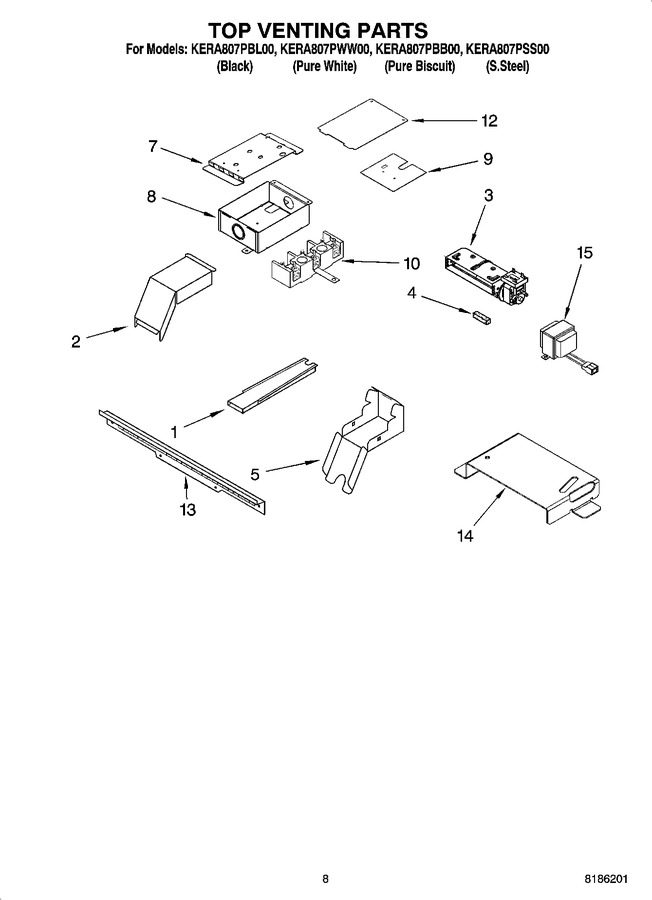

06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 105.01
1	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
2	4455178		Elbow, Vent- Top				$ 15.52
3	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 7.55
3	WP4455352		Bracket   (Replaces: 4455352)				$ 37.51
3	W10810687		Blower   (Replaces: 8300223)			Immediately	$ 343.34
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
5	4455177		Elbow, Vent- Bottom				$ 11.39
7	WP4449809		Screw (2)   (Replaces: 4449809)			Immediately	$ 7.55
7	9759883		Bracket, Term.box		Appelez-nous	-
8	WP4449809		Screw (3)   (Replaces: 4449809)			Immediately	$ 7.55
8	W10115858		Box, Terminal   (Replaces: 9757404)				$ 122.00
9	9759884		Insulator, Termianl Box		Appelez-nous	-
10	WP9761958		Block, Terminal   (Replaces: 9757136)			Immediately	$ 47.96
12	9757405		Cover, Term Box				$ 43.66
12	W10491985		Screw (2)   (Replaces: 3196160)			Immediately	$ 7.55
13	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
13	9757118BL		Vent, (control Panel)		Appelez-nous	-
14	9757829		Bracket, Transfrmr		Appelez-nous	-
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	9756551		Transformer				$ 121.36
	W11839019		Anti-tip Assembly   (Replaces: 9782676)			Immediately	$ 28.54
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	9759796		Harness, Wire (left)		Appelez-nous	-
	9759797		Harness, Wire (right)		Appelez-nous	-
	9759855		Harness, Apssc Smart Knob				$ 65.60
	9759715		Conduit		Appelez-nous	-
	313660		Clip, Ground Wire		Appelez-nous	-
	4448664		Clamp				$ 21.41
	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
	WP112432		Nut   (Replaces: 112432)				$ 8.63
	4450800		Screw, Ground				$ 13.47
	4452222		Spacer, Harness		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP3400015		Screw, Ground   (Replaces: 3400015)				$ 7.55
	N/A		Miscellaneous		Appelez-nous	-
	814381		Hinge Pin Kit				$ 11.28
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 8.16
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 27.83
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	261900		Paint, Spray (citrine White)				$ 59.89
	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 63.51
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
	9759791		Harness, Wire (main)				$ 186.63
	9759793		Harness, Wire (switch, Elec)		Appelez-nous	-
	9759795		Harness, Main Smart, Knob		Appelez-nous	-
