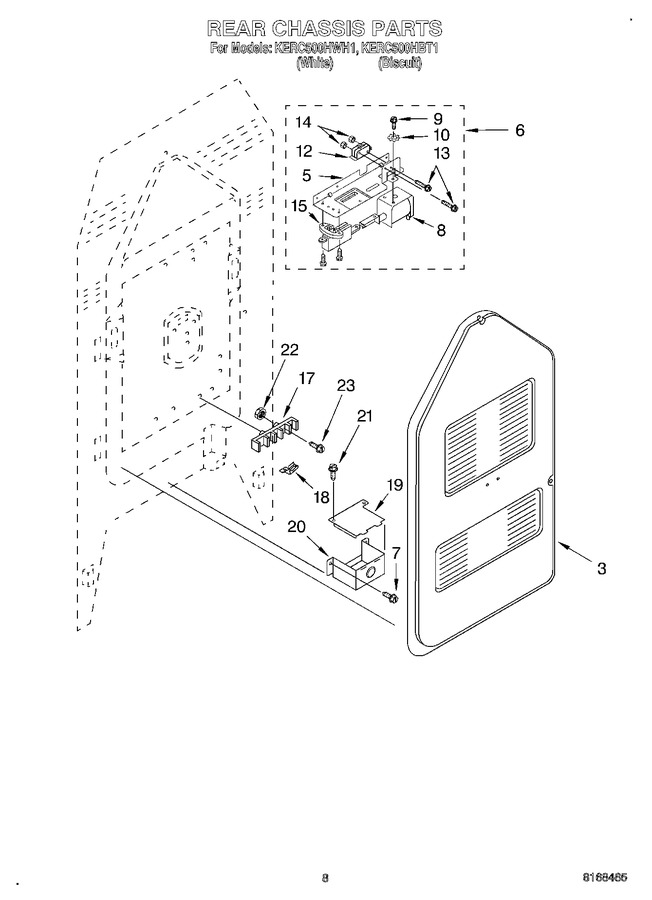

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	9750150		Panel, Rear		Appelez-nous	-
5	9750526		Bracket, Lock		Appelez-nous	-
6	9752404		Oven Lock Assembly		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9752409		Solenoid		Appelez-nous	-
9	422222		Screw,10-32 X 5/16		Appelez-nous	-
10	424238		Washer, No.10 Lock		Appelez-nous	-
12	9750965		Switch, Interlock				$ 72.00
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut		Appelez-nous	-
15	9752462		Single Position Device (not Serviced)		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 30.13
18	3169573		Strap, Ground		Appelez-nous	-
19	9752345		Cover, Terminal Box		Appelez-nous	-
20	9752344		Box, Terminal		Appelez-nous	-
21	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
22	WP112432		Nut, 10-32 Hex   (Replaces: 112432)				$ 8.63
23	9751745		Anti-tip Kit				$ 19.35
23	CERAMABRYTE		Cleaner, Glass   (Replaces: 814009)			Immediately	$ 9.95
23	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
23	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
23	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	9781930		Harness, Wire (single Ceran)		Appelez-nous	-
23	9781903		Jumper, Conv.		Appelez-nous	-
23	WPW10339879		Wire Tie   (Replaces: 20082084)				$ 8.30
23	9753680		Harness, Wire (kwz)		Appelez-nous	-
23	313660		Clip, Ground		Appelez-nous	-
23	WP681414		Screw, Ground   (Replaces: 690989)			Immediately	$ 8.47
23	98884		Screw, 10-16 X 1		Appelez-nous	-
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
23	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
23	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
23	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
23	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
23	4392899		Biscuit			Immediately	$ 27.77
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
23	261888		New Avocado		Appelez-nous	-
23	261886		Coffee		Appelez-nous	-
23	261890		Harvest Gold		Appelez-nous	-
23	285006		Paint, Spray 13 Oz. (black)				$ 59.89
23	350942		Primer (white)   (Replaces: 206922)				$ 94.14
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	978883		Almond (uncut)		Appelez-nous	-
23	261891		Harvest Gold (uncut)		Appelez-nous	-
23	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
23	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
23	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
23	261582		Grease		Appelez-nous	-
23	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
23	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
23	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
23	9781908		Harness, Wire (oven)		Appelez-nous	-
23	9753687		Harness, Wire (simmer)		Appelez-nous	-
23	9752771		Harness, Wire (cooktop)		Appelez-nous	-
23	9753682		Harness, Wire (c.t.-dual Ceran)		Appelez-nous	-
23	9750744		Harness, Wire (door)		Appelez-nous	-
