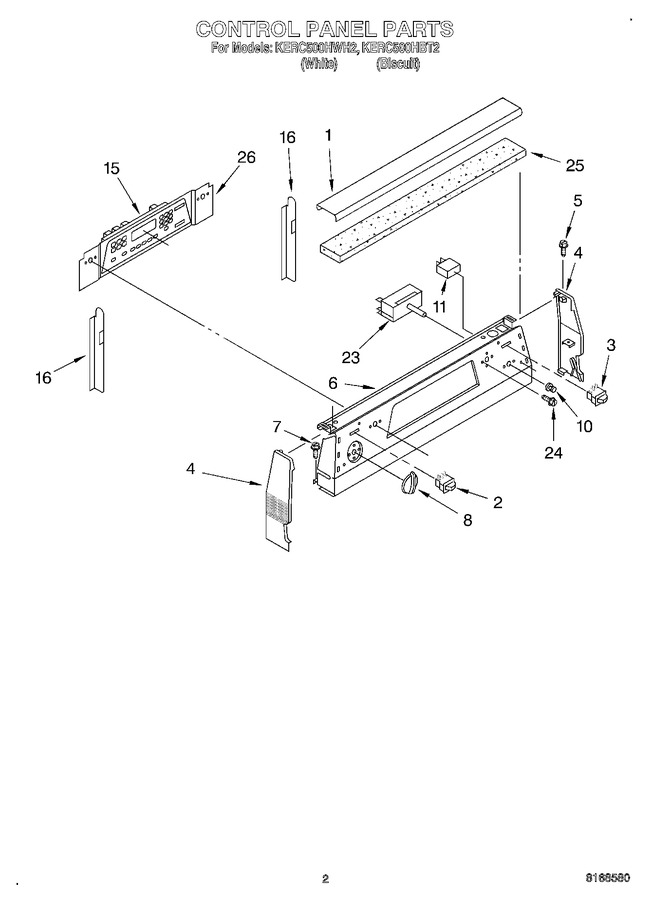

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9753156PW		Lamp Cover (white)		Appelez-nous	-
1	9753156PC		Lamp Cover (biscuit)		Appelez-nous	-
2	9753692FW		Switch, Warm Zone (white)		Appelez-nous	-
2	9753692FC		Switch, Warm Zone (biscuit)		Appelez-nous	-
3	WPW10163899		Switch, Oven Light (biscuit)   (Replaces: 9753261FC)				$ 93.86
3	9753261FW		Switch, Oven Light (white)		Appelez-nous	-
4	9750366FC		End Cap (biscuit, Lh)		Appelez-nous	-
4	9750366FW		End Cap (white, Lh)		Appelez-nous	-
4	9750367FC		End Cap (biscuit, Rh)		Appelez-nous	-
4	9750367FW		End Cap (white, Rh)		Appelez-nous	-
5	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
6	9753724PW		Panel, Control (white)		Appelez-nous	-
6	9753724PC		Panel, Control (biscuit)		Appelez-nous	-
7	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
8	WP9750372FC		Knobs, Control (4) (biscuit)   (Replaces: 9750372FC)			Immediately	$ 7.55
8	WP9750372FW		Knobs, Control (4) (white)   (Replaces: 9750372FW)				$ 20.99
10	WP9750343		Indicator Lens   (Replaces: 9752589)			Immediately	$ 6.00
11	9753422		Light Module (2)		Appelez-nous	-
15	9753636CW		Oven Control Assembly (white)		Appelez-nous	-
15	9753636CC		Oven Control Assembly (biscuit)		Appelez-nous	-
16	9780655		Brace, Control Pnl		Appelez-nous	-
23	WP9750638		Infinite Switch (1500w - Rr)   (Replaces: 9750638)			Immediately	$ 113.89
23	WP9750639		Infinite Switch (1800w - Rf-lr)   (Replaces: 9750639)			Immediately	$ 152.66
23	8203538		Infinite Switch (dual - Lf)   (Replaces: 9753499)			Immediately	$ 123.23
24	WP3400882		Screw (8)   (Replaces: 3400816)			Immediately	$ 7.55
25	9754008		Insulation, Control		Appelez-nous	-
26	9753690		Bracket, Timer		Appelez-nous	-
