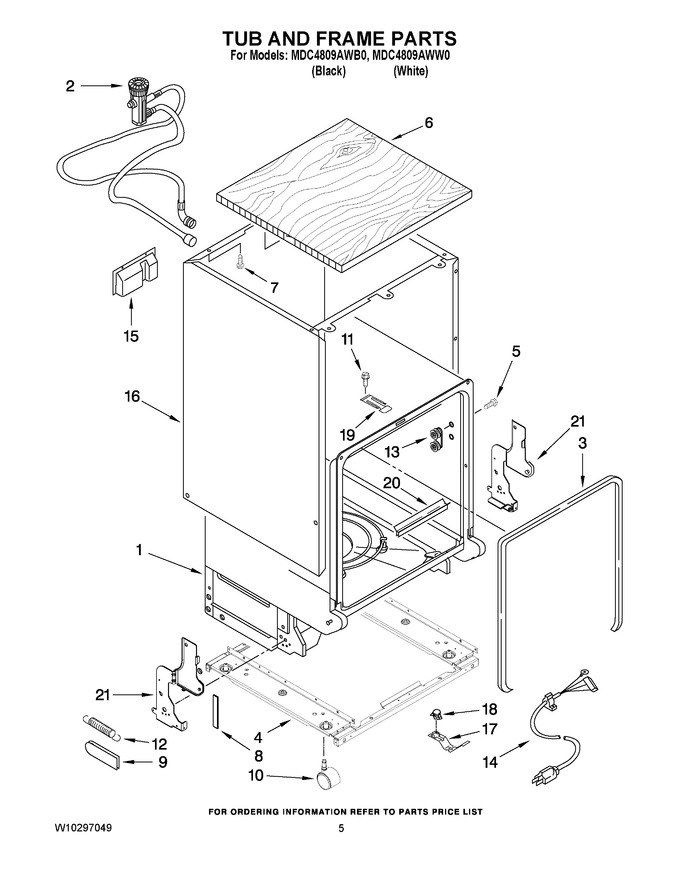

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10413848 | Tub Assembly (includes Heater Assembly) (Replaces: W10254860) |
|
$ 602.70 | |||||
| 2 | W10842407 | Coupler Assy (Replaces: W10219674) |
|
Immediately | $ 207.55 | ||||
| 3 | W10542314 | Door Seal (Replaces: 8268888) |
|
Immediately | $ 97.26 | ||||
| 4 | W10254984 | Frame Assy (Replaces: 8559928) |
|
$ 173.73 | |||||
| 5 | W10817436 | Screw (Replaces: 8533836) |
|
Immediately | $ 8.14 | ||||
| 6 | WP3373199 | Panel-top (Replaces: 3373199) |
|
$ 395.30 | |||||
| 7 | WP681414 | Screw (Replaces: 304428) |
|
Immediately | $ 8.47 | ||||
| 8 | WP8268961 | Pad, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 9 | WP8268990 | Bushing, Door (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 10 | WP8559933 | Caster (Replaces: 8559933) |
|
Immediately | $ 103.49 | ||||
| 11 | W10165274 | Screw |
|
$ 13.47 | |||||
| 12 | WPW10337934 | Spring, Door Balance (Replaces: 8524473) |
|
Immediately | $ 36.34 | ||||
| 13 | WP8270016 | Wheel & Mount Assembly (Replaces: 8270016) |
|
$ 88.84 | |||||
| 14 | W10831279 | Cord-power (Replaces: W10219671) |
|
$ 151.24 | |||||
| 15 | W10219673 | Housing, Hose |
|
- | |||||
| 16 | W10219676 | Shell Assy (black) |
|
- | |||||
| 16 | W10219677 | Shell Assy (white) |
|
- | |||||
| 17 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 20.14 | |||||
| 18 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 19 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 20 | W10219682 | Protector, Edge (long) |
|
$ 104.73 | |||||
| 20 | W10254751 | Protector, Edge (short) |
|
$ 77.24 | |||||
| 21 | W10185369 | Hinge Bracket (right) |
|
- | |||||
| 21 | W10185368 | Hinge Bracket (left) |
|
- |
