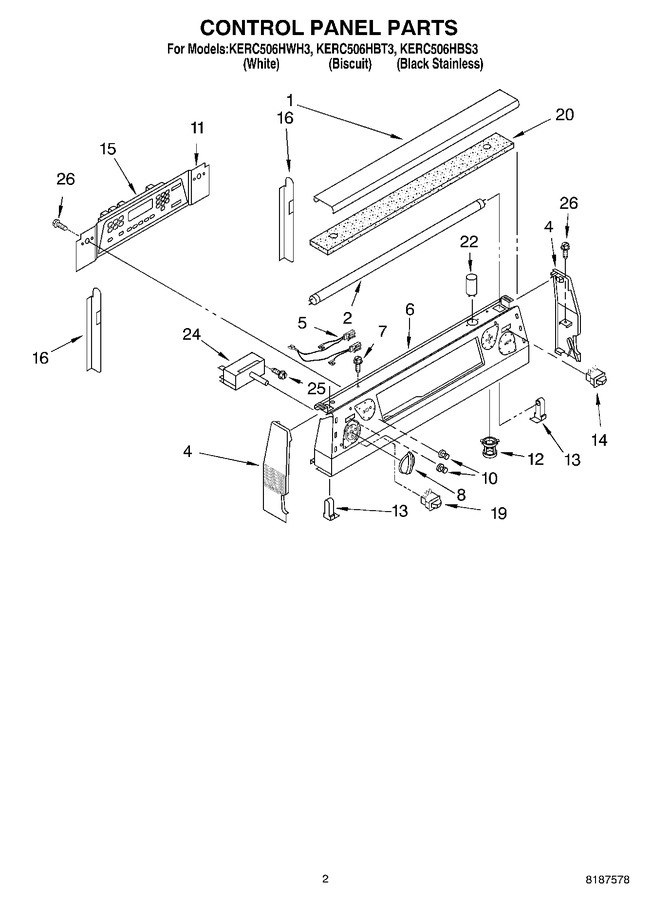

02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9753156PB | Lamp Cover (black) |
|
- | |||||
| 1 | 9753156PW | Lamp Cover (white) |
|
- | |||||
| 1 | 9753156PC | Lamp Cover (biscuit) |
|
- | |||||
| 2 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 134.94 | ||||
| 4 | 9750366FW | End Cap R.h. (white) |
|
- | |||||
| 4 | 9750366FB | End Cap R.h. (black) |
|
- | |||||
| 4 | 9750366FC | End Cap R.h. (biscuit) |
|
- | |||||
| 4 | 9750367FB | End Cap R.h. (black End Cap L.h.) |
|
- | |||||
| 4 | 9750367FC | End Cap R.h. (biscuit) |
|
- | |||||
| 4 | 9750367FW | End Cap R.h. (white) |
|
- | |||||
| 5 | 9753422 | Light, Indicator |
|
- | |||||
| 6 | 9753725PS | Panel, Control (stainless) |
|
- | |||||
| 6 | 9753725PW | Panel, Control (white) |
|
- | |||||
| 6 | 9753725PC | Panel, Control (biscuit) |
|
- | |||||
| 7 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 8 | WP9750372FF | Knobs, Control (black) (Replaces: 9750372FF) |
|
Immediately | $ 22.00 | ||||
| 8 | WP9750372FW | Knobs, Control (white) (Replaces: 9750372FW) |
|
$ 20.99 | |||||
| 8 | WP9750372FC | Knobs, Control (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 7.55 | ||||
| 10 | WP9750343 | Lens, Indicator (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 11 | 9753690 | Bracket, Timer |
|
- | |||||
| 12 | 9750866 | Starter, Holder |
|
- | |||||
| 13 | 9782259 | Receptacle, Light |
|
$ 33.60 | |||||
| 14 | WPW10163899 | Switch, Simmer (biscuit) (Replaces: 9753261FC) |
|
$ 93.86 | |||||
| 14 | 9753261FW | Switch, Simmer (white) |
|
- | |||||
| 14 | WPW10163899 | Switch, Simmer (black) (Replaces: 9753261FB) |
|
$ 93.86 | |||||
| 15 | 9782090CB | Control, Oven (black) |
|
- | |||||
| 15 | 9782090CC | Control, Oven (biscuit) |
|
- | |||||
| 15 | 9782090CW | Control, Oven (white) |
|
- | |||||
| 16 | 9780655 | Brace, Timer Bracket |
|
- | |||||
| 19 | 9753692FB | Switch, Warm Zone (black) |
|
- | |||||
| 19 | 9753692FW | Switch, Warm Zone (white) |
|
- | |||||
| 19 | 9753692FC | Switch, Warm Zone (biscuit) |
|
- | |||||
| 20 | 9754008 | Insulation, Cntrl |
|
- | |||||
| 22 | 9781118 | Starter, Light |
|
- | |||||
| 24 | WP9750638 | Infinite Switch (1500w - Rr) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 24 | WP9755173 | Infinite Switch (1000/2400w - Lf) (Replaces: 9755173) |
|
Immediately | $ 149.46 | ||||
| 24 | WP9750639 | Infinite Switch (1800w - Rf-lr) (Replaces: 9750639) |
|
Immediately | $ 152.66 | ||||
| 25 | WP3400882 | Screw, 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 26 | 9780265 | Screw, 10-16 X 3/8 |
|
- |
