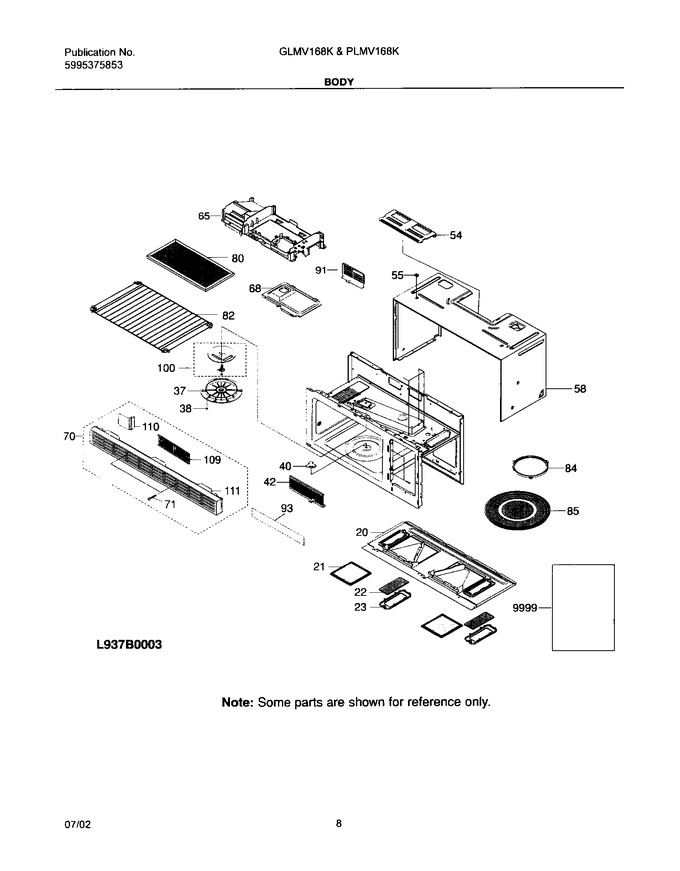

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	5304429460		Panel,base Plate ,black ,bottom		Appelez-nous	-
21	5304408977		Filter,air ,(2)				$ 29.95
22	WG02L00282		Lens,cooktop Lamp ,glass ,(2)   (Replaces: 5304408988)				$ 9.20
23	5304429462		Frame,lens Holder ,black		Appelez-nous	-
37	5304408986		Cover,stirrer/antenna		Appelez-nous	-
38	5304408979		Rivet,push Mount ,plastic ,stirrer Cover				$ 39.85
40	5304429464		Coupler,shaft Bushing ,turntable/motor				$ 113.66
42	5304408990		Cover,front		Appelez-nous	-
54	5304417437		Bracket,motor Mtg ,turntable/vent ,wrpr Top Plate		Appelez-nous	-
55	5304423504		Holder Nut,assy				$ 59.64
58	5304429465		Casing,wrapper ,black ,outer Panel		Appelez-nous	-
65	5304429468		Duct,exhaust Vent ,upper		Appelez-nous	-
68	5304408982		Bracket,duct Assy ,upper		Appelez-nous	-
70	5304429469		Grille Assy,black				$ 314.90
71	5304408994		Screw,grille Mtg ,black ,(2)				$ 29.77
80	5304409641		Filter,air ,charcoal		Appelez-nous	-
82	5304423519		Rack,microwave Oven ,wire				$ 320.05
84	5304417414		Support,turntable Tray ,with Rollers				$ 193.99
85	5304423399		Tray,turntable ,glass				$ 255.83
91	5304429472		Bracket-barrier,filter		Appelez-nous	-
93	5304423524		Label,cooking Guide		Appelez-nous	-
100	5304429473		Stirrer Assembly				$ 224.39
109	5304429474		Bracket,grille		Appelez-nous	-
110	5304429475		Bracket,grille ,left Side		Appelez-nous	-
111	5304429476		Grille,exhaust ,black				$ 294.42
NI	316137215		Technical Guide,mini-manual ,w/wiring Dia.		Appelez-nous	-
