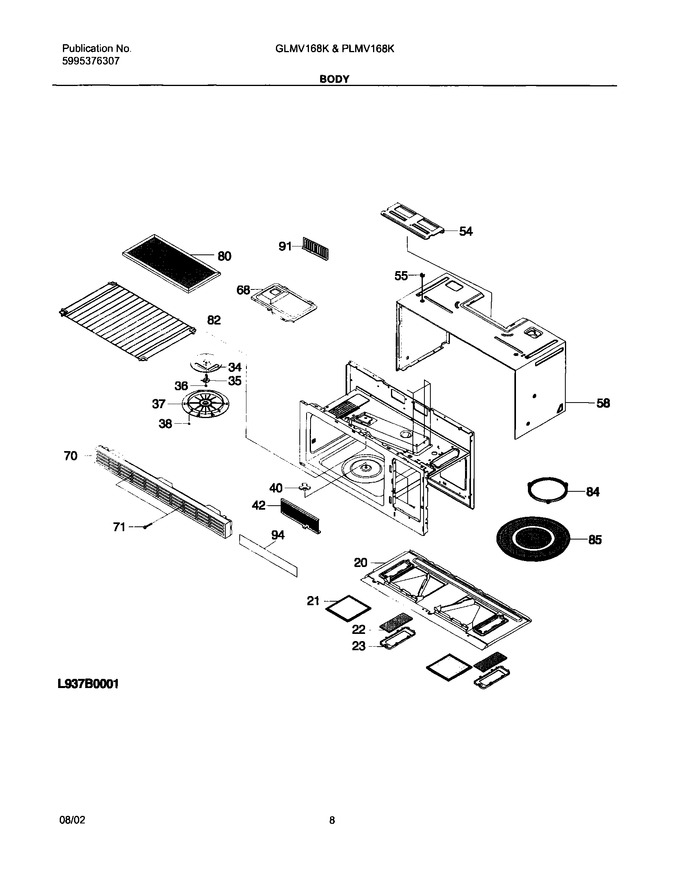

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	5304423416		Plate,oven Base ,white ,bottom Cover		Appelez-nous	-
21	5304408977		Filter,air ,(2)				$ 29.95
22	WG02L00282		Lens,cooktop Lamp ,glass ,(2)   (Replaces: 5304408988)				$ 9.20
23	5304408974		Cover,lens Frame ,white ,lamp		Appelez-nous	-
35	5304423487		Collar`motor Shaft ,stirrer Fan		Appelez-nous	-
36	5304423501		Pivot Tip,shaft Collar ,stirrer Motor		Appelez-nous	-
37	5304408986		Cover,stirrer/antenna		Appelez-nous	-
38	5304408979		Rivet,push Mount ,plastic ,stirrer Cover				$ 39.85
40	5304417415		Bushing,motor Shaft ,turntable				$ 146.48
42	5304408990		Cover,front		Appelez-nous	-
54	5304417437		Bracket,motor Mtg ,turntable/vent ,wrpr Top Plate		Appelez-nous	-
55	5304423504		Holder Nut,assy				$ 59.64
58	5304423507		Casing,wrapper ,white ,outer Panel		Appelez-nous	-
68	5304408982		Bracket,duct Assy ,upper		Appelez-nous	-
70	5304423514		Grille,exhaust ,bisque		Appelez-nous	-
71	5304417413		Screw,grille Mtg ,bisque ,(2)		Appelez-nous	-
80	5304409641		Filter,air ,charcoal		Appelez-nous	-
82	5304423519		Rack,microwave Oven ,wire				$ 320.05
84	5304417414		Support,turntable Tray ,with Rollers				$ 193.99
85	5304423399		Tray,turntable ,glass				$ 255.83
91	5304423522		Bracket,filter		Appelez-nous	-
94	5304423524		Label,cooking Guide		Appelez-nous	-
F34	5304423478		Fan Blade,stirrer/antenna		Appelez-nous	-
