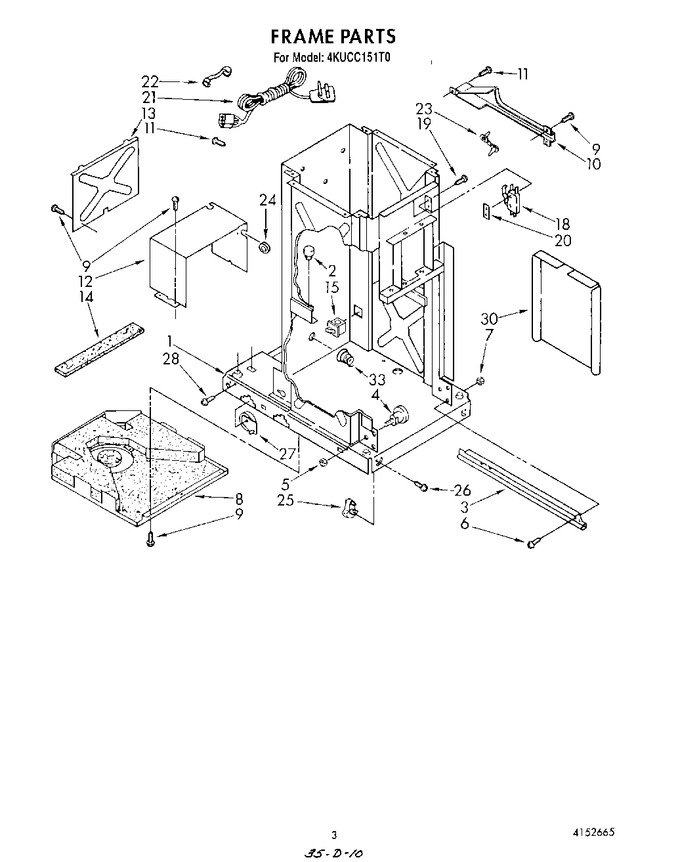

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	775643		Bumper (4)		Appelez-nous	-
3	00608090		Frame, Slide (r.h.)   (Replaces: 608090)				$ 47.22
3	00608091		Frame, Slide (l.h.)   (Replaces: 608091)				$ 48.96
4	882688		Bearing, Roller (2)   (Replaces: 776262)				$ 21.19
5	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
6	WP486754		Screw, 6-32 X 3/8 (4)   (Replaces: 777458)				$ 8.01
7	776188		Nut, 6-32 (4)		Appelez-nous	-
8	WP780437		Pan, Bottom   (Replaces: 780437)				$ 316.61
9	WP489069		Screw, 8 X 1/2   (Replaces: 776076)			Immediately	$ 8.40
10	4149659		Shield, Harness		Appelez-nous	-
11	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
12	608849		Cover, Motor		Appelez-nous	-
13	780441		Plate, Motor Cover		Appelez-nous	-
14	776780		Barrier, Glass		Appelez-nous	-
15	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
18	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
19	777849		Screw, 6-20 X 1 (2)				$ 7.36
20	777850		Plate, Nut				$ 77.13
21	778575		Cord, Power		Appelez-nous	-
22	W11820597		Bushing, Cord   (Replaces: 776119)		Appelez-nous	-
23	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
24	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
25	780082		Leveler, Front (2)		Appelez-nous	-
26	780125		Screw, 10-16 X 3/4 (2)		Appelez-nous	-
27	780139		Wheel, Leveler (r.h. Rear)		Appelez-nous	-
27	W11023674		Wheel, Leveler (l.h. Rear)   (Replaces: 780137)				$ 54.05
28	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 780131)			Immediately	$ 7.30
30	780412		Insulation, Inner Panel		Appelez-nous	-
33	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
