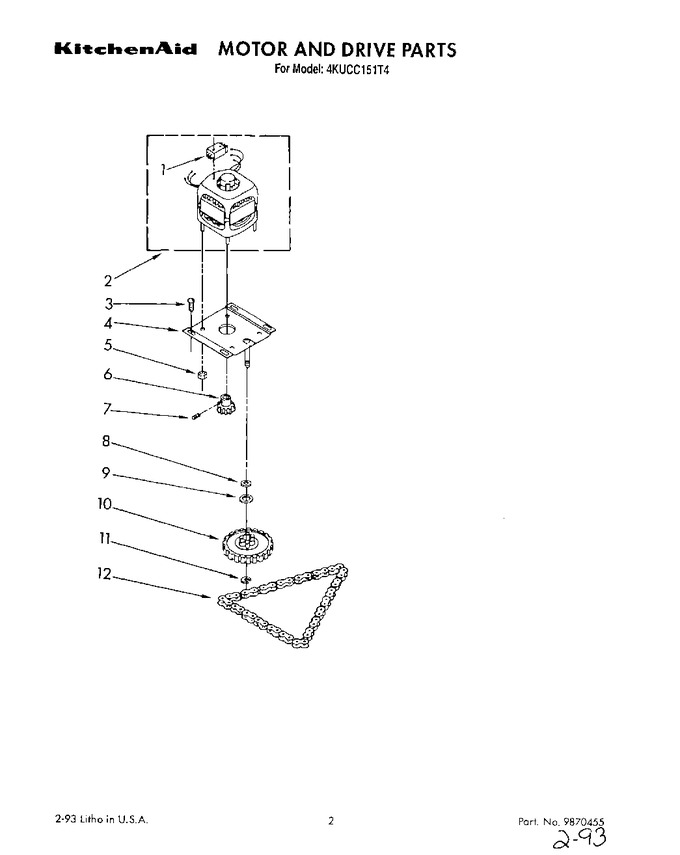

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439651		Switch, Motor   (Replaces: 777971)				$ 343.19
2	W10439651		Motor, Drive (includes No. 1)   (Replaces: 780359)				$ 343.19
3	776593		Screw. 1/4-20 X 1/2 (4)		Appelez-nous	-
4	776327		Plate, Drive Mount		Appelez-nous	-
5	WP776338		Locknut, 10-32 (4)   (Replaces: 776338)				$ 20.32
6	882699		Gear, Drive   (Replaces: 4149667)				$ 123.55
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.92
8	776035		Washer, Wave				$ 14.05
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 14.24
10	882699		Gear, Driven   (Replaces: 777124)				$ 123.55
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.80
12	780477		Chain, Drive				$ 217.07
12	4151552		Harness, Wiring		Appelez-nous	-
12	9870118A		Undercounter Conversion Kit   (Replaces: 9870118)				$ 64.54
	LIT4151912		Sheet, Tech (english)		Appelez-nous	-
	LIT9870455		List, Repair Parts		Appelez-nous	-
	LIT9870409		Instructions, Installation (french)		Appelez-nous	-
	LIT9870491		Instructions, Installation (english)		Appelez-nous	-
	LIT9870411		Guide, Use And Care		Appelez-nous	-
	LIT9870155		Wiring Diagram		Appelez-nous	-
	LIT4152666		Sheet, Tech (french)		Appelez-nous	-
