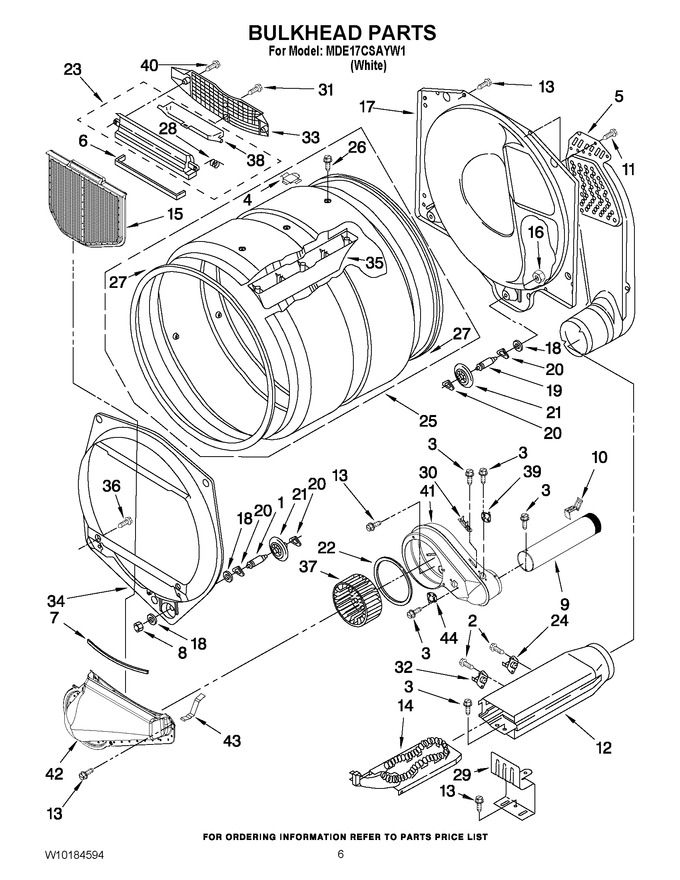

03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 3 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 4 | 8066086 | Drum Hole Plug |
|
$ 11.29 | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut, 3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | 279936 | Exhaust Pipe (Replaces: 8066224) |
|
$ 154.18 | |||||
| 10 | W11684573 | Clip (Replaces: 8572105) |
|
$ 8.17 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | W10802681 | Box, Heater (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 14 | W10864898 | Element, Heater (Replaces: 3387748) |
|
$ 335.60 | |||||
| 15 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 67.16 | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 367.62 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 23 | W11129408 | Housing, Outlet (Replaces: 8563755) |
|
Immediately | $ 53.28 | ||||
| 24 | 279973 | Cut-off, Thermal (includes Illus. 32) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 25 | W10545923 | Drum Complete (Replaces: 8318215) |
|
$ 458.60 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP3394986 | Spring, Lint Screen (Replaces: 3394986) |
|
$ 93.47 | |||||
| 29 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 30 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 31 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 32 | WP3391914 | Thermostat 295 F (Replaces: 3391914) |
|
Immediately | $ 119.47 | ||||
| 33 | W11086603 | Grill, Outlet (Replaces: 8563756) |
|
Immediately | $ 36.90 | ||||
| 34 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 218.43 | |||||
| 35 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 36 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 38 | W11222846 | Door, Lint Screen (Replaces: 8563758) |
|
Immediately | $ 213.91 | ||||
| 39 | WPW10178809 | Thermostat 140°f Cycling (Replaces: W10178809) |
|
$ 126.91 | |||||
| 40 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 41 | W11744012 | Housing, Blower (Replaces: W10135254) |
|
$ 121.75 | |||||
| 42 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 43 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 44 | WPW10131836 | Thermostat 155°f Electronic (Replaces: W10131836) |
|
$ 166.49 |
