SELECT A DIAGRAM

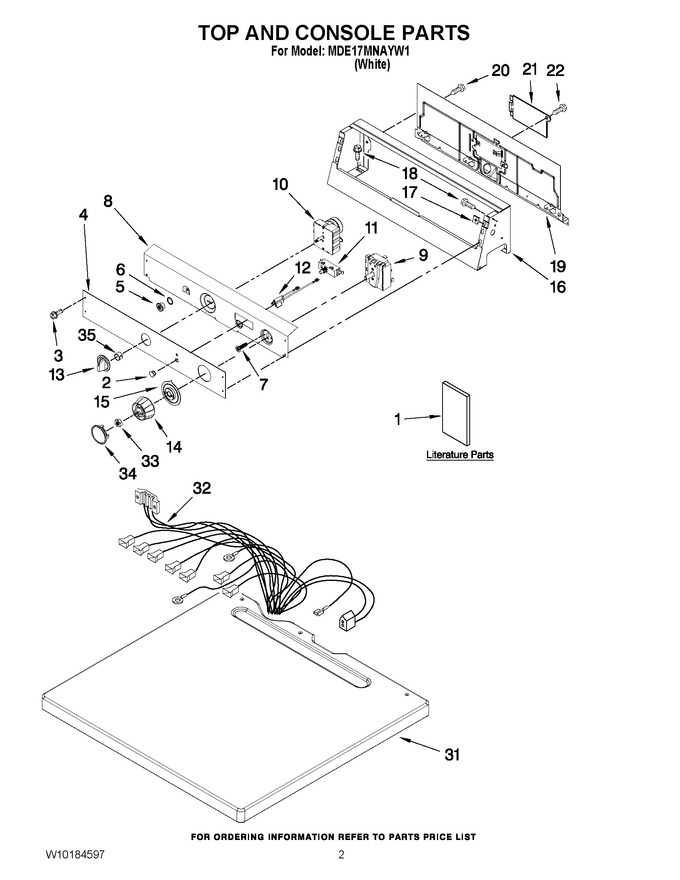

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184597 | Repair Parts List |
|
- | |||||
| 1 | W10184576 | Instructions, Installation |
|
- | |||||
| 1 | W10163155 | Wiring Diagram |
|
- | |||||
| 2 | WPW10133502 | Lens, Pilot Light Amber (Replaces: W10133502) |
|
$ 12.87 | |||||
| 3 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 6.95 | |||||
| 4 | W10135184 | Facia / Overlay |
|
$ 78.25 | |||||
| 5 | W10146429 | Nut, 8-32 X 3/8 |
|
- | |||||
| 6 | WPW10139799 | Washer (Replaces: W10139799) |
|
$ 9.24 | |||||
| 7 | W10139100 | Screw |
|
$ 12.39 | |||||
| 8 | W10124216 | Bracket, Control |
|
- | |||||
| 9 | WPW10157942 | Timer, Dryer (Replaces: W10157942) |
|
$ 334.17 | |||||
| 10 | WPW10327105 | Switch, Cycle Selection (Replaces: W10129712) |
|
$ 161.66 | |||||
| 11 | WPW10149462 | Switch, Push-to-start (Replaces: W10149462) |
|
$ 67.52 | |||||
| 12 | W10662107 | Lamp-indicator 120 V. (Replaces: W10130072) |
|
$ 25.89 | |||||
| 13 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 26.27 | ||||
| 14 | W11232017 | Knob, Control (Replaces: W10133505) |
|
$ 11.13 | |||||
| 15 | W10133506 | Skirt, Dial |
|
$ 18.95 | |||||
| 16 | W10235158 | Console (Replaces: W10205150) |
|
- | |||||
| 17 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 7.71 | |||||
| 18 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 7.50 | |||||
| 19 | 285909 | Panel, Rear (upper) (Replaces: 8317305) |
|
$ 248.97 | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 21 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 128.35 | |||||
| 22 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 7.82 | ||||
| 31 | WPW10136704 | Top (Replaces: W10136704) |
|
$ 260.43 | |||||
| 32 | W10153137 | Harness, Main |
|
- | |||||
| 33 | W10155650 | Nut, 1/4-28 |
|
$ 13.37 | |||||
| 34 | WPW10133501 | Cap, Knob (Replaces: W10133501) |
|
$ 60.84 | |||||
| 35 | W10140928 | Clip, Knob |
|
$ 5.22 |
