SELECT A DIAGRAM

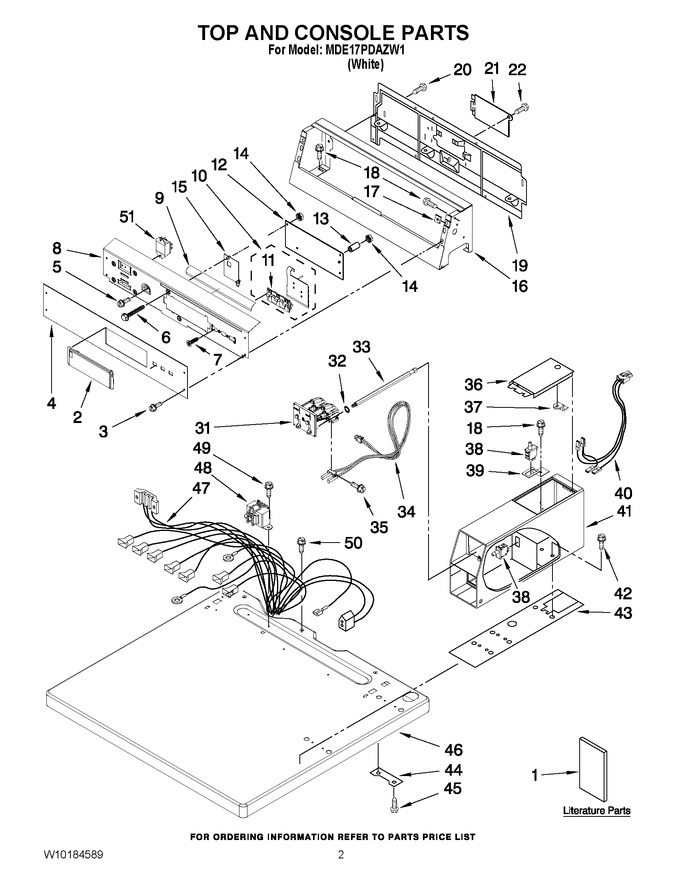

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184578		Instructions Installation		Appelez-nous	-
1	W10183571		Tech Sheet		Appelez-nous	-
1	W10184589		Repair Parts List		Appelez-nous	-
2	WPW10131114		Cover, Display   (Replaces: W10131114)				$ 47.54
3	WPW10131119		Screw   (Replaces: W10131119)				$ 6.95
4	W10135181		Facia-overlay				$ 125.73
5	WP489128		Screw   (Replaces: W10142728)				$ 10.88
6	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
7	W10756178		Screw   (Replaces: W10140652)				$ 5.99
8	W10124214		Bracket, Control		Appelez-nous	-
9	W10133515		Deflector		Appelez-nous	-
10	WPW10135233		Push Button & Switch Assembly   (Replaces: W10135233)				$ 187.04
11	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 20.42
12	WPW10130081		Control Board   (Replaces: W10130081)				$ 277.17
13	W11117166		Spacer   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.79
15	W10161476		Shield, Probing				$ 78.50
16	W10231471		Console   (Replaces: W10205153)		Appelez-nous	-
17	WPW10131123		Nut, No.8 U Type   (Replaces: W10131123)				$ 7.71
18	WPW10139210		Screw   (Replaces: W10139210)				$ 7.50
19	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 285.38
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
21	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 128.35
22	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.82
31	W11643135		Dual Coin Drop Assembly   (Replaces: W10133245)				$ 568.97
32	W11170663		Washer   (Replaces: W10068270)				$ 4.32
33	WPW10137319		Hex Bar Bolt   (Replaces: W10137319)				$ 81.30
34	WPW10247389		Coin Optic Sensor Assembly   (Replaces: W10130178)			Immediately	$ 115.90
35	WP3395530		Screw   (Replaces: W10142655)				$ 7.70
36	W11283272		Door, Service   (Replaces: 3351136)				$ 105.88
37	W11401086		Cam, Commercial Lock   (Replaces: W10156125)				$ 6.17
38	WPW10131838		Switch-vault & Service Door   (Replaces: W10131838)				$ 23.91
39	W11204533		Bracket, Service   (Replaces: W10133508)		Appelez-nous	-
40	W10847806		Harness Wire Sensor Switch   (Replaces: W10139456)				$ 113.80
41	WPW10529176		Meter Case   (Replaces: W10136645)				$ 273.48
42	3353994		Bolt, Meter Case Mounting (5/16-18 X 2 1/2)		Appelez-nous	-
42	W11715721		Bolt Meter Case Mounting (5/16-18 X 1.00)   (Replaces: 3349065)				$ 7.12
43	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 31.10
44	3347825		Plate, Mounting		Appelez-nous	-
45	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
46	WPW10136707		Top   (Replaces: W10136707)				$ 356.18
47	W10111009		Harness, Main				$ 289.58
48	WPW10131839		Transformer 120 To 22.5 Vac.   (Replaces: W10131839)			Immediately	$ 133.55
49	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
50	W11676450		Screw   (Replaces: 3400000)				$ 14.06
51	W10133335		Relay, Motor				$ 40.14

    View Diagram in Separate Window       Print Part List
