01 - Cover Sheet

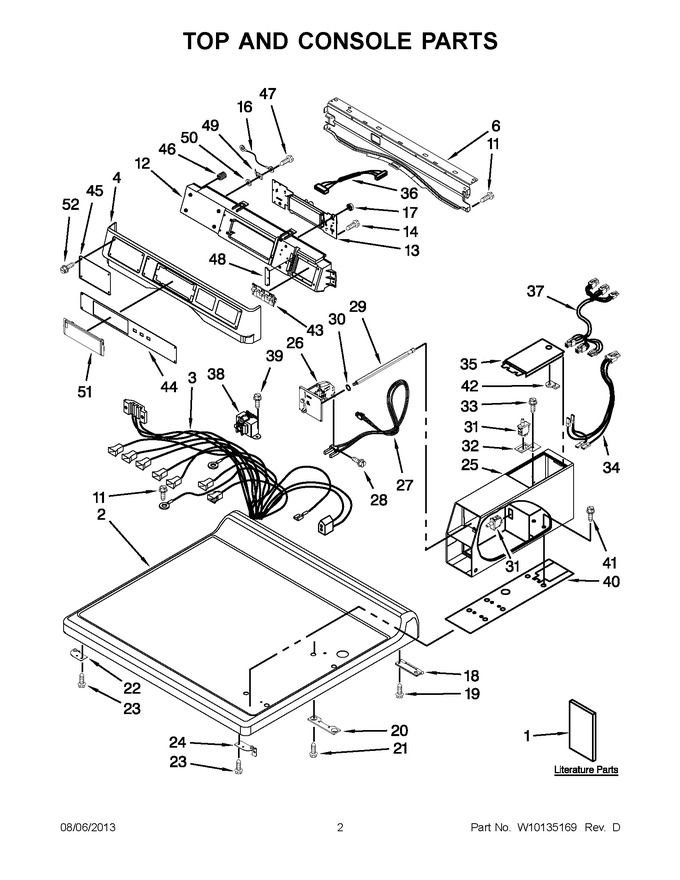

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10135154 | Installation Instruction |
|
- | |||||
| 1 | W10166332 | Tech Sheet |
|
- | |||||
| 2 | WPW10137411 | Top (white) (Replaces: W10137411) |
|
$ 410.00 | |||||
| 3 | W10111005 | Harness, Main |
|
$ 166.88 | |||||
| 4 | W10779120 | Console (outer) (Replaces: W10137459) |
|
$ 138.64 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W11790400 | Console (inner) (Replaces: W10137427) |
|
- | |||||
| 13 | WPW10166385 | User-interface Assembly (Replaces: W10137416) |
|
Immediately | $ 611.57 | ||||
| 14 | 489136 | Screw |
|
$ 10.80 | |||||
| 16 | W10188087 | Assembly, Ground Wire |
|
- | |||||
| 17 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 18 | WP8565018 | Hinge & Pin Assembly (white) (Replaces: 8565018) |
|
$ 115.34 | |||||
| 19 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 20 | 3347825 | Plate, Mounting |
|
- | |||||
| 21 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 22 | W10137445 | Bracket - Top Panel, Left |
|
- | |||||
| 23 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 24 | W10137444 | Bracket - Top Panel, Right |
|
- | |||||
| 25 | WPW10171128 | Case, Meter (Replaces: W10171128) |
|
$ 359.38 | |||||
| 26 | WPW10133242 | Assembly, Single Coin Drop (Replaces: W10133242) |
|
$ 126.51 | |||||
| 27 | WPW10247389 | Sensor Assembly, Coin Optic (Replaces: W10130178) |
|
Immediately | $ 121.70 | ||||
| 28 | WP3395530 | Screw (Replaces: W10142655) |
|
$ 8.57 | |||||
| 29 | WPW10137319 | Bolt, Hex Bar (Replaces: W10137319) |
|
$ 85.37 | |||||
| 30 | W11170663 | Washer, Lock (Replaces: W10068270) |
|
$ 4.54 | |||||
| 31 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 32 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 33 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 8.03 | |||||
| 34 | W10847806 | Wire Harness, Sensor Switch (Replaces: W10139456) |
|
$ 119.49 | |||||
| 35 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 111.17 | |||||
| 36 | W10166307 | Harness, Communication |
|
$ 41.32 | |||||
| 37 | W10166308 | Harness, Meter Case |
|
- | |||||
| 38 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 39 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 40 | W10137448 | Cushion, Meter Case |
|
- | |||||
| 41 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 7.48 | |||||
| 42 | W11401086 | Cam, Commercial Lock (Replaces: W10145154) |
|
$ 6.17 | |||||
| 43 | WPW10424308 | Button, Push (Replaces: W10131113) |
|
Immediately | $ 21.44 | ||||
| 44 | W10137438 | Fascia-console |
|
- | |||||
| 45 | W10137461 | Dispenser, Fascia |
|
- | |||||
| 46 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 9.23 | |||||
| 47 | WP488234 | Screw (Replaces: 488234) |
|
$ 7.08 | |||||
| 48 | W10187276 | Seal, Console |
|
- | |||||
| 49 | 3373818 | Tab, Grounding |
|
- | |||||
| 50 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 51 | WPW10131114 | Cover, Display (Replaces: W10131114) |
|
$ 49.92 | |||||
| 52 | WPW10137457 | Screw (Replaces: W10137457) |
|
$ 7.85 |
