01 - Top And Console Parts
02 - Cabinet Parts

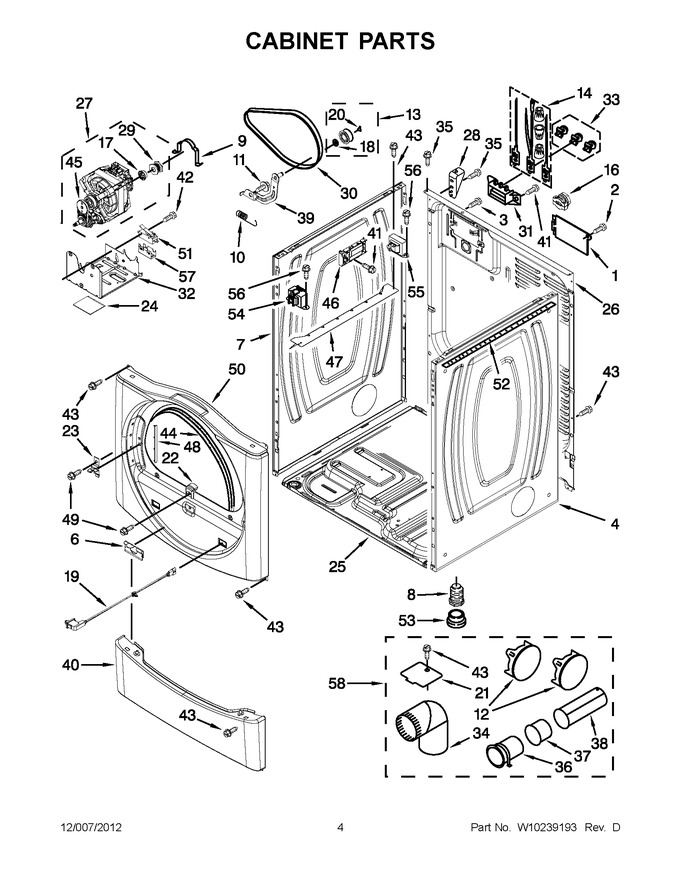

03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 134.77 | |||||
| 2 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10542714 | Panel, Side Right Hand (white) (Replaces: 8565048) |
|
$ 350.58 | |||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 7 | W10542714 | Panel, Side Left Hand (white) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 49252) |
|
$ 75.58 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 16 | W11704629 | Relief, Strain (power Cord) (Replaces: 8316644) |
|
- | |||||
| 17 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 18 | WP233520 | Washer (plastic) (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | W11192375 | Assembly, Door Switch (Replaces: W10251066) |
|
- | |||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Plate, Cover (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8565083 | Ramp, Door |
|
- | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 24 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 23.29 | |||||
| 25 | W11215531 | Base, Cabinet (Replaces: W10225178) |
|
$ 365.36 | |||||
| 26 | W10225180 | Panel, Rear |
|
- | |||||
| 27 | W10416574 | Assembly, Motor (50 Hz.) (Replaces: W10142402) |
|
$ 349.13 | |||||
| 28 | W10137398 | Stop, Top Panel |
|
- | |||||
| 29 | W10167237 | Pulley |
|
- | |||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | WP489464 | Screw (Replaces: W10080700) |
|
Immediately | $ 8.38 | ||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | WPW10344192 | Assembly, Idler (Replaces: W10141380) |
|
Immediately | $ 94.57 | ||||
| 40 | WP8540621 | Toe Panel (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 41 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 42 | 3400934 | Assembly, Screw & Insulator |
|
- | |||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 46 | WPW10166301 | Board, Control (Replaces: W10166301) |
|
$ 256.12 | |||||
| 47 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 48 | 8565043 | Plug, Front Panel |
|
$ 97.29 | |||||
| 49 | W10080710 | Screw |
|
- | |||||
| 50 | W10255282 | Panel, Front |
|
- | |||||
| 51 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 52 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 39.71 | |||||
| 53 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 54 | W10751202 | Transformer (Replaces: W10205520) |
|
$ 225.34 | |||||
| 55 | W10237958 | Transformer 240 - 120 Vac |
|
- | |||||
| 56 | W10080820 | Screw |
|
- | |||||
| 57 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 58 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
