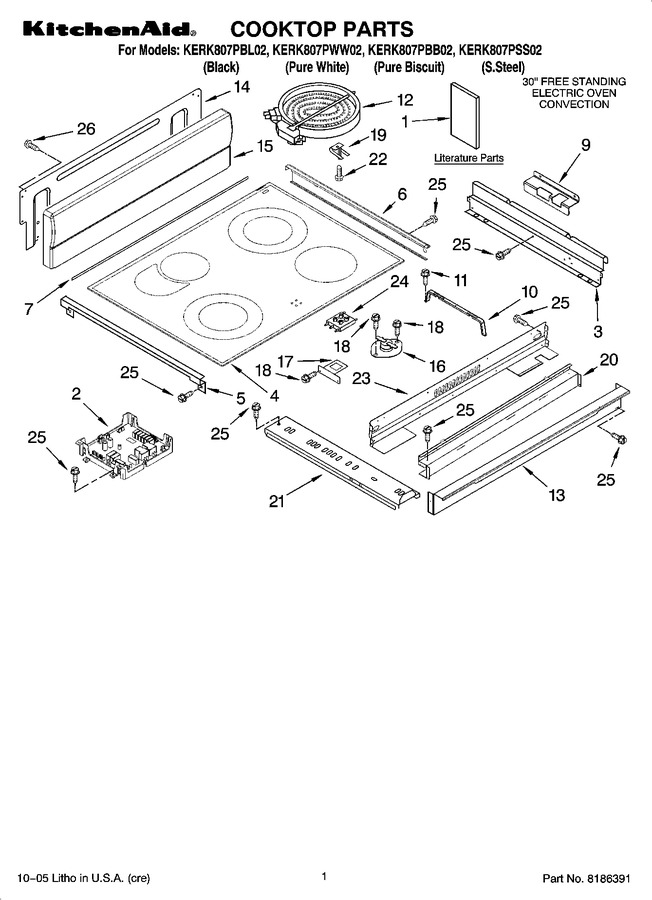

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9757645 | Guide, Easy Set |
|
- | |||||
| 1 | 9762035 | Installation Instructions |
|
- | |||||
| 1 | 9762265 | Use & Care Guide |
|
- | |||||
| 1 | 9760713 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 2 | 9761593 | Central, Appliance |
|
$ 375.97 | |||||
| 3 | 4454023 | Bracket, Mounting |
|
- | |||||
| 4 | 9759748BB | Cooktop (biscuit) |
|
- | |||||
| 4 | 9759748BL | Cooktop (black) |
|
- | |||||
| 4 | 9759748WW | Cooktop (white) |
|
- | |||||
| 4 | 9759748SS | Cooktop (s.steel) |
|
- | |||||
| 5 | 4453764 | Clip, Ceran (2) |
|
- | |||||
| 6 | 9756701SS | Trim-cktop, Si (s.steel Rh) |
|
- | |||||
| 6 | 9756701BT | Trim-cktop, Si (biscuit Rh) |
|
- | |||||
| 6 | 9756701WH | Trim-cktop, Si (white Rh) |
|
- | |||||
| 6 | 9756700SS | Trim-cktop, Si (s.steel Lh) |
|
- | |||||
| 6 | 9756700BL | Trim-cktop, Si (black Lh) |
|
- | |||||
| 6 | 9756700BT | Trim-cktop, Si (biscuit Lh) |
|
- | |||||
| 6 | 9756700WH | Trim-cktop, Si (white Lh) |
|
- | |||||
| 6 | 9756701BL | Trim-cktop, Si (black Rh) |
|
- | |||||
| 7 | 9756450 | Gasket |
|
$ 107.73 | |||||
| 9 | 9757687 | Support (r.hand) |
|
$ 38.36 | |||||
| 9 | 9757686 | Support (l.hand) |
|
$ 38.48 | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 12 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 12 | 8203525 | Element, Surface (1800/1000w) |
|
- | |||||
| 12 | W10823692 | Element, Surface (2500/1200w (2)) (Replaces: 4453909) |
|
Immediately | $ 227.59 | ||||
| 13 | 9757800 | Bracket, Front Support |
|
- | |||||
| 14 | 4454019 | Cover, Backsplash Rear |
|
- | |||||
| 15 | 9757767BL | Backsplash (black) |
|
- | |||||
| 15 | 9759886SS | Backsplash (s.steel Gasket) |
|
- | |||||
| 15 | 9759454BT | Backsplash (biscuit) |
|
- | |||||
| 15 | 9759454BL | Backsplash (black) |
|
- | |||||
| 15 | 9759454WH | Backsplash (white) |
|
- | |||||
| 15 | 9757767GY | Backsplash (gray) |
|
- | |||||
| 16 | WP9759944 | Thrmstat, 60c Spst (Replaces: 9759944) |
|
Immediately | $ 135.08 | ||||
| 17 | 9758799 | Bracket, Ind. Lamp |
|
$ 47.83 | |||||
| 18 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 19 | 9759094 | Spring, Locator |
|
$ 7.39 | |||||
| 20 | 9759963 | Bracket, Rear Sprt |
|
- | |||||
| 21 | 8285962 | Rail, Element (2) (side (3)) |
|
- | |||||
| 21 | 9757825 | Rail, Element (2) (center (1)) |
|
- | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 8.01 | |||||
| 23 | 9761724 | Cover, Cktp Rear |
|
$ 35.73 | |||||
| 24 | 8523739 | Indicator Lamp, Hot Surface |
|
$ 120.71 | |||||
| 25 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 26 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
