View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

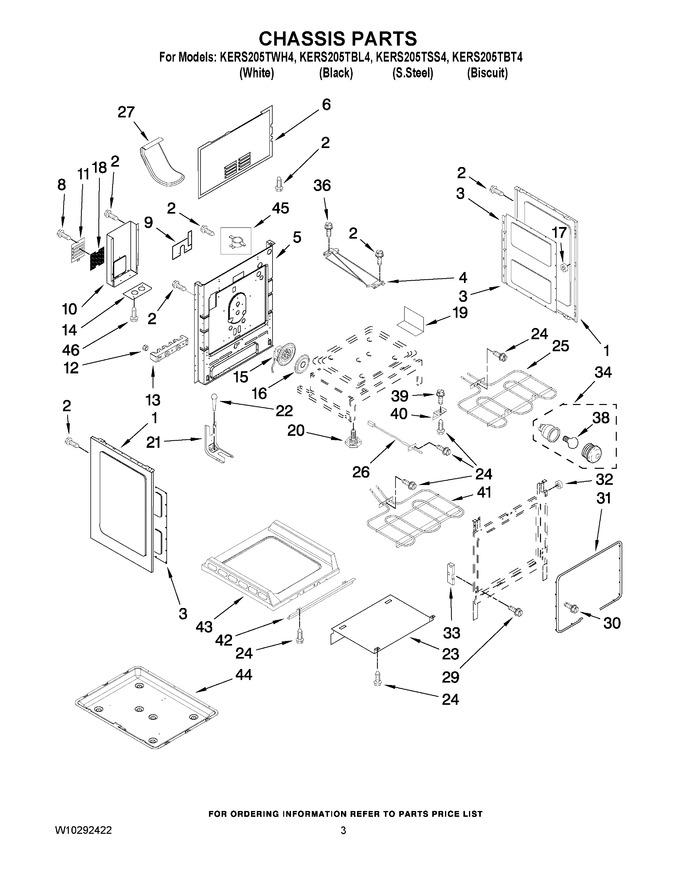

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F172-58 | Panel, Side (white) |
|
$ 47.61 | |||||
| 1 | 2618F172-69 | Panel, Side (black) |
|
$ 81.90 | |||||
| 1 | 2618F172-57 | Panel, Side (biscuit) |
|
$ 48.84 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | 3804F300-51 | Retainer, Insulation |
|
$ 69.39 | |||||
| 4 | W10792991 | Latch Assembly (Replaces: 8002P104-60) |
|
$ 339.59 | |||||
| 5 | W10205618 | Main Back |
|
$ 78.53 | |||||
| 6 | W10243046 | Cover, Main Wire |
|
- | |||||
| 8 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 9 | 7003P145-60 | Insulator, Cord |
|
- | |||||
| 10 | W10243045 | Cover, Wire (lwr) |
|
- | |||||
| 11 | 4005P704-51 | Panel, Access |
|
$ 7.07 | |||||
| 12 | WP7103P027-60 | Nut, Term.block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 13 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 35.17 | ||||
| 14 | 3605P146-51 | Plate, Conduit |
|
- | |||||
| 15 | 3605F305-19 | Plate, Convection |
|
- | |||||
| 16 | 7427P109-60 | Fan, Convection |
|
$ 208.29 | |||||
| 17 | W10182346 | Insulation, Side Panel |
|
$ 77.83 | |||||
| 18 | W10260573 | Screen, Access |
|
- | |||||
| 19 | 3801P798-51 | Bracket, Oven |
|
- | |||||
| 20 | W11665456 | Leg, Leveling (Replaces: 7101P507-60) |
|
Immediately | $ 29.52 | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 22 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 23 | 3604F371-51 | Shield, Heat |
|
$ 13.98 | |||||
| 24 | W11347848 | Screw, 8ab 1/2 (4) (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 25 | WP7406P493-60 | Element, Broil (Replaces: 7406P493-60) |
|
Immediately | $ 208.82 | ||||
| 26 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 27 | 8026P081-60 | Vent, Oven |
|
- | |||||
| 29 | WP4159193 | Screw (4) (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 30 | 7101P618-60 | Screw, Shoulder(6) |
|
- | |||||
| 31 | W11562931 | Gasket (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 32 | 74008690 | Spacer, Side Pnl. (Replaces: 8010P148-60) |
|
$ 22.74 | |||||
| 33 | WP74010551 | Receiver, Hinge (Replaces: 7106P125-60) |
|
Immediately | $ 14.70 | ||||
| 34 | W11594027 | Light Assembly (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 36 | W11594027 | Screw (black) (2) (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 38 | 8009 | Bulb, Oven (Replaces: 7407P103-60) |
|
Immediately | $ 18.67 | ||||
| 39 | WP74003976 | Screw, Shoulder (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 40 | 3801P822-45 | Support, Ov Btm |
|
$ 5.27 | |||||
| 41 | WPW10276482 | Element, Bake (Replaces: 7406P451-60) |
|
Immediately | $ 162.33 | ||||
| 42 | 3807P680-45 | Support, Oven |
|
$ 33.39 | |||||
| 43 | WPW10211368 | Bottom, Oven (Replaces: W10211367) |
|
Immediately | $ 337.76 | ||||
| 44 | 3401F084-45 | Pan, Bake Brnr |
|
$ 56.18 | |||||
| 45 | 74008715 | Switch, Terminal (Replaces: 7403P857-60) |
|
$ 213.97 | |||||
| 46 | WP4159193 | Screw (2) (Replaces: 7101P336-60) |
|
$ 5.07 | |||||
| NI | 7002P362-60 | Insulation, Wrap |
|
$ 79.17 | |||||
| NI | W10243056 | Insulation, Back |
|
$ 57.29 | |||||
| NI | 4820F014-59 | Strap, Insulation |
|
- | |||||
| NI | 7002P361-60 | Insulation, Bottom |
|
- |
