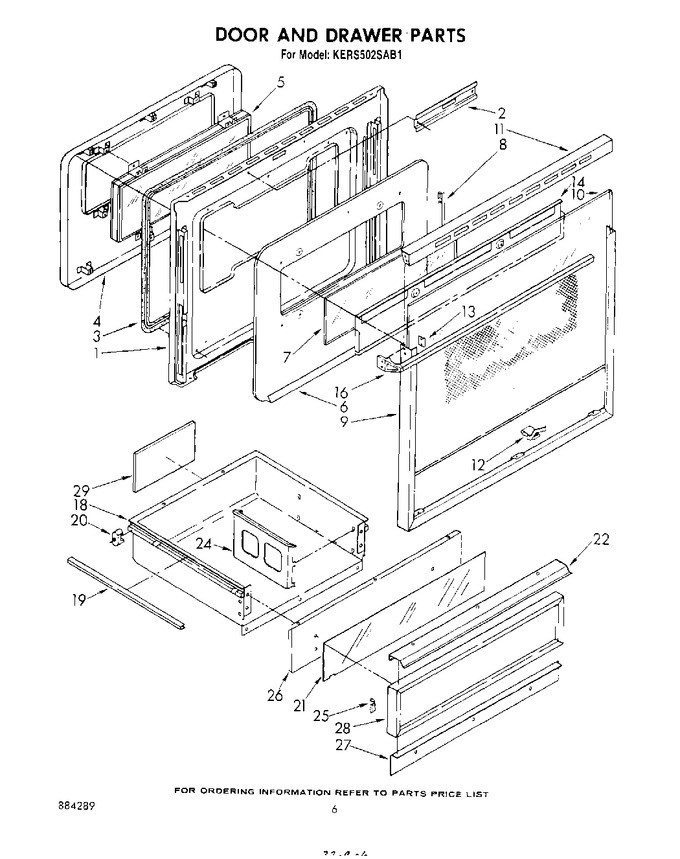

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	311056		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	327898		Panel, Inner		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
5	330038		Window Package		Appelez-nous	-
6	308021		Retainer, Insulation		Appelez-nous	-
6	247326		Screw, 10a X 1/2 (8)		Appelez-nous	-
7	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
8	309843		Retainer, Glass		Appelez-nous	-
9	3148023		Frame, Door		Appelez-nous	-
10	309069		Glass, Outer		Appelez-nous	-
11	314250		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
12	314234		Clip, Glass (10)		Appelez-nous	-
13	314235		Clip (2)		Appelez-nous	-
14	WP90296		Clip (2)   (Replaces: 90296)				$ 7.85
14	309056		Baffle, Heat		Appelez-nous	-
16	3147636		Handle, Oven Door		Appelez-nous	-
16	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 7.67
18	330667		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
21	314261		Glass, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.57
22	3148021		Handle, Drawer		Appelez-nous	-
24	357645		Rack, Literature		Appelez-nous	-
25	314234		Clip, Glass		Appelez-nous	-
26	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.87
26	314259		Liner, Glass		Appelez-nous	-
27	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.87
27	314323		Plate, Kick		Appelez-nous	-
27	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
28	3148022		Frame, Glass		Appelez-nous	-
29	302340		Pad, Sound (2)		Appelez-nous	-
