01 - Cabinet
02 - Cabinet-rear
03 - Control Panel
04 - Door
05 - Gas Valve
06 - Heater
07 - Motor Drive
08 - Tumbler
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:

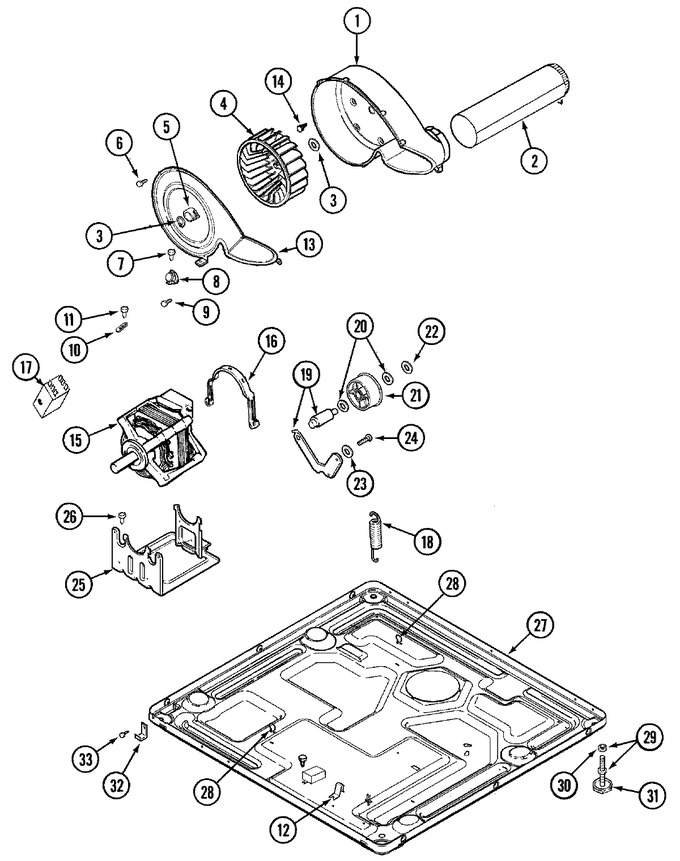

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP33001789 | Housing, Blower (Replaces: 33001789) | 10 |
|
$ 149.33 | ||||
| 2 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 14.72 | |||
| 2 | 33001800 | Duct Assy., Exhaust | 10 |
|
- | ||||
| 3 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 4.60 | |||
| 4 | 33001790 | Wheel, Blower | 10 |
|
Immediately | $ 49.70 | |||
| 5 | WP312967 | Clamp, Blower Housing (Replaces: 312967) | 10 |
|
Immediately | $ 12.46 | |||
| 6 | WP33002917 | Screw (hex Head) (Replaces: 33001855) | 10 |
|
Immediately | $ 8.48 | |||
| 7 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 8 | WP694674 | Thermostat, Ultra Care (Replaces: 33002409) | 10 |
|
Immediately | $ 50.51 | |||
| 8 | WP3387137 | Thermostat,(elec) Multi-temp (Replaces: 306911) | 10 |
|
$ 143.20 | ||||
| 9 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 11.40 | ||||
| 10 | WP33001762 | Fuse, Thermal (w` Bracket) (Replaces: 33001762) | 10 |
|
Immediately | $ 55.38 | |||
| 11 | WP90767 | Screw (Replaces: 314848) | 10 |
|
Immediately | $ 8.25 | |||
| 12 | 22002244 | Clip, Grounding | 10 |
|
- | ||||
| 13 | 33001796 | Cover, Blower Housing | 10 |
|
- | ||||
| 14 | 314818 | Screw | 10 |
|
- | ||||
| 15 | W10410997 | Motor (Replaces: 33002478) | 28 |
|
Immediately | $ 183.76 | |||
| 15 | W10410997 | Motor (120v 60hz) (Replaces: 33002462) | 26 |
|
Immediately | $ 183.76 | |||
| 15 | WP33002676 | Timer, Electronic Dry (Replaces: 33002676) | 40 |
|
$ 379.92 | ||||
| 15 | W10410997 | Motor (w/pulley) (Replaces: 33002237) | 10 |
|
Immediately | $ 183.76 | |||
| 16 | WPY015825 | Clip, Motor (Replaces: Y015825) | 10 |
|
$ 25.17 | ||||
| 17 | W10410997 | Switch, Motor (Replaces: 33001854) | 10 |
|
Immediately | $ 183.76 | |||
| 18 | 33002459 | Spring, Idler (Replaces: 33001754) | 10 |
|
$ 8.10 | ||||
| 18 | 33002157 | Grommet | 10 |
|
- | ||||
| 18 | 33002461 | Plug For Spring | 25 |
|
- | ||||
| 18 | 33002459 | Spring, Idler (Replaces: 33002460) | 25 |
|
$ 8.10 | ||||
| 19 | WP6-3705180 | Idler Arm & Shaft Assy. (Replaces: 33001840) | 10 |
|
Immediately | $ 49.24 | |||
| 20 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 10 |
|
Immediately | $ 11.12 | |||
| 21 | WP6-3700340 | Bearing, Idler Assembly (Replaces: 33001783) | 10 |
|
Immediately | $ 27.75 | |||
| 22 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) | 10 |
|
Immediately | $ 12.34 | |||
| 23 | WP315772 | Sleeve, Idler Arm (Replaces: 315772) | 10 |
|
$ 12.12 | ||||
| 24 | WPY014874 | Screw (Replaces: Y014874) | 10 |
|
$ 8.18 | ||||
| 25 | 33001752 | Support, Motor | 10 |
|
- | ||||
| 25 | 33002466 | Support, Motor | 25 |
|
- | ||||
| 25 | Y313561 | Screw----na | 25 |
|
$ 5.27 | ||||
| 26 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 27 | 33002622 | Base, (lwr) | 36 |
|
- | ||||
| 27 | 33002465 | Base, (lwr)----na | 38 |
|
- | ||||
| 27 | 33002465 | Base, (lwr)----na | 25 |
|
- | ||||
| 27 | 33001845 | Base | 10 |
|
- | ||||
| 28 | 410490 | Spring, Wire Harness | 10 |
|
- | ||||
| 29 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 8.35 | ||||
| 30 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 8.33 | ||||
| 31 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 32 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 33 | Y310632 | Screw | 10 |
|
- |
