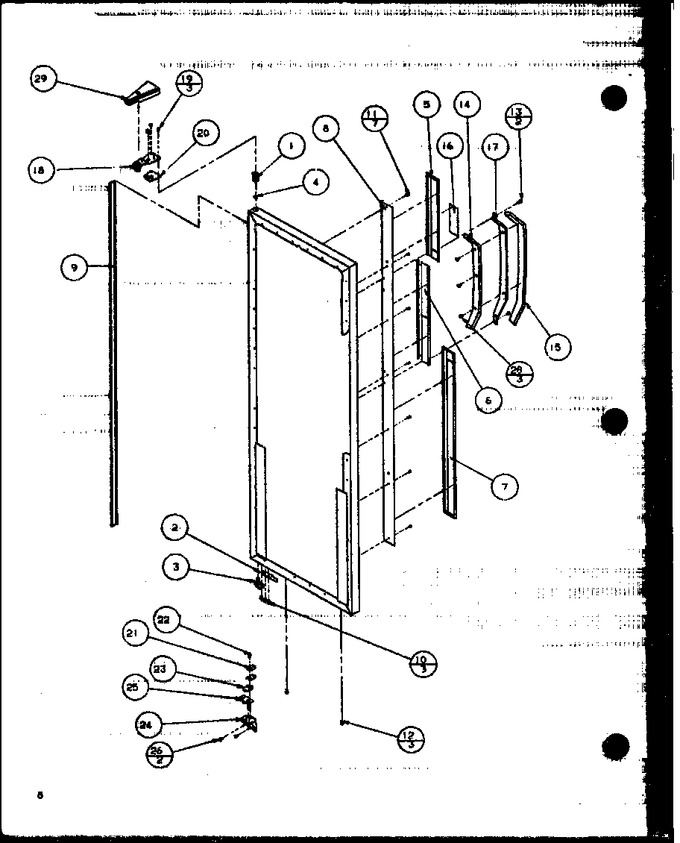

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10263802		Bushing, Door (wht)		Appelez-nous	-
2	C8972402		Stop, Door		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.19
4	10252902		Filter Bushing		Appelez-nous	-
5	D7852010		Trim		Appelez-nous	-
6	D7853805		Trim Center Ref Dr		Appelez-nous	-
7	D7792805		Trim Lwr Ref Door		Appelez-nous	-
8	D7793202		Ref. Trim, Retainer		Appelez-nous	-
9	C8974102		Trim, Door		Appelez-nous	-
10	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
11	M0213815		Screw		Appelez-nous	-
12	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.88
13	R9800670		Kit, Screw   (Replaces: M0211030)				$ 9.38
14	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
15	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
16	C8984306		Thinplate K		Appelez-nous	-
17	D7826603		Handle		Appelez-nous	-
18	10185101		Top Hinge-e Ct		Appelez-nous	-
19	R9800670		Kit, Screw   (Replaces: M0226331)				$ 9.38
20	B8389001		Shim, Top Hinge		Appelez-nous	-
21	B8387701		Shim, Door Closure		Appelez-nous	-
21	B8387702		Shim, Door Closure		Appelez-nous	-
22	WP489128		Screw   (Replaces: M0220417)				$ 10.88
23	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.19
24	10163602		Rh Bot Hinge-bk E Ct		Appelez-nous	-
25	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
25	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
25	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
26	WP67006715		Screw   (Replaces: M0233847)				$ 7.19
28	M0215116		Screw		Appelez-nous	-
29	D7872101		Cover Hinge		Appelez-nous	-
