Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9757687 Support, Drawer Rail (right) Special Order $ 38.36

1 9757686 Support, Drawer Rail (left) Special Order $ 38.48

2 9763501BL Support, Front & Rear Special Order $ 43.72

3 4453720 Brace, Drawer (right) Special Order $ 34.27

3 4453721 Brace, Drawer (left) Special Order $ 34.27

4 9759943 Brace, Base Front Appelez-nous -
5 9759954 Side, Base (left) Special Order $ 88.47

5 9759953 Side, Base (right) Special Order $ 108.70

6 WPW10058460 Foot   (Replaces: W10058460) In-Stock Immediately $ 8.24

8 WP3196037 Foot Assembly   (Replaces: 3196037) Special Order $ 87.12

9 9756673 Guide, Roller (2) Special Order $ 65.49

10 9757806 Drawer Special Order $ 182.02

11 9756836 Drawer Slide (right) Appelez-nous -
11 9756838 Drawer Slide (left) Appelez-nous -
12 9760592 Panel, Drawer Appelez-nous -
13 W10140545 Front, Drawer (stainless) Appelez-nous -
13 9761747WH Front, Drawer (white) Appelez-nous -
13 W10203760 Front, Drawer (black) Special Order $ 18.33

14 9761573SS Handle, Drawer (stainless) Appelez-nous -
14 9761573BL Handle, Drawer (black) Appelez-nous -
14 9761573WH Handle, Drawer (white) Special Order $ 79.22

15 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95


    View Diagram in Separate Window     Print Icon   Print Part List

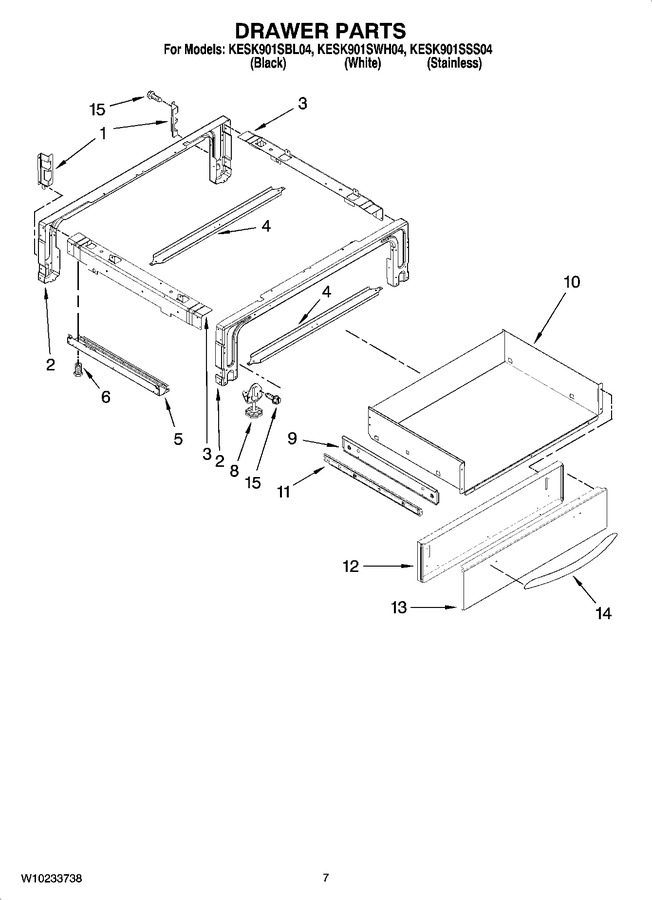

Diagram for KESK901SSS04
