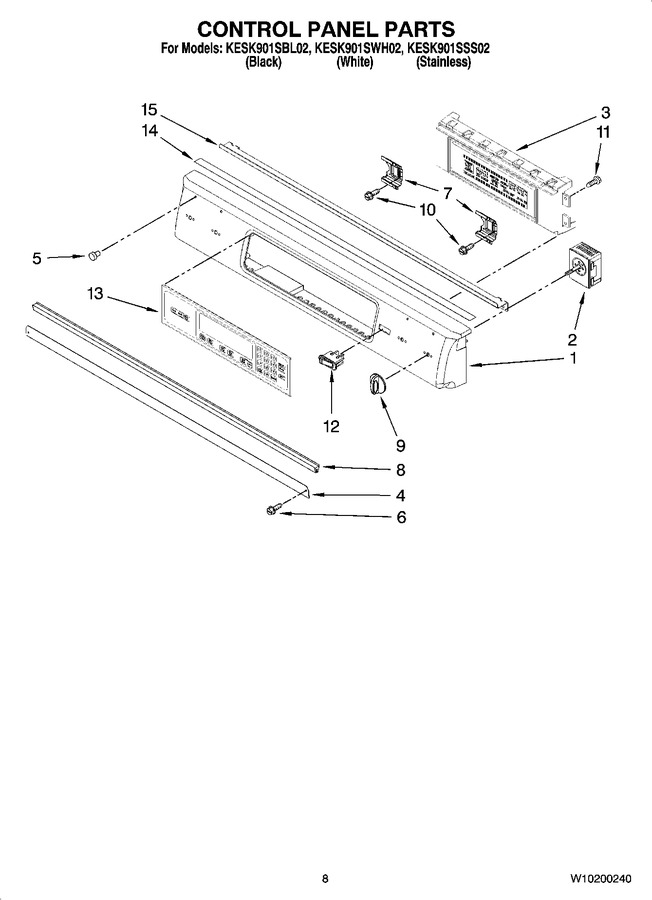

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10117046		Control Panel (black)		Appelez-nous	-
1	W10117047		Control Panel (white)		Appelez-nous	-
1	W10156275		Control Panel (stainless)		Appelez-nous	-
2	WP3191049		Switch, Infinite (lr)   (Replaces: 4454539)				$ 175.29
2	WP4454541		Switch, Infinite (rr)   (Replaces: 4454541)				$ 174.37
2	WP4456027		Switch, Infinite (lf)   (Replaces: 4456027)				$ 161.82
2	WP3191050		Switch, Infinite (rf)   (Replaces: 4454540)			Immediately	$ 174.68
3	W10181442		Control, Electric		Appelez-nous	-
4	W10105370		Shield, Console Vent				$ 69.83
5	WP3196068		Lens, Indictor (2)   (Replaces: 3196068)			Immediately	$ 6.26
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
7	9761745		Bracket, Thermostat (2)				$ 40.75
8	W10116195		Gasket, Vent Shield				$ 77.94
9	W10130377		Knob Lr,lf,rr (black)		Appelez-nous	-
9	W10156263		Knob Rf (stainless)				$ 43.24
9	W10156264		Knob Lr,lf,rr (stainless)				$ 47.04
9	W10130380		Knob Rf (black)		Appelez-nous	-
9	W10130381		Knob Rf (white)		Appelez-nous	-
9	W10130378		Knob Lr,lf,rr (white)		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
11	9780271		Screw		Appelez-nous	-
12	WPW10163899		Switch, Simmer (black & Stainless)   (Replaces: W10163899)				$ 93.86
12	W10163901		Switch, Simmer (white)				$ 224.68
13	9761565		Membrane, Switch				$ 214.96
14	W10110246		Gasket, Console				$ 123.31
15	W10117524		Bracket, Gasket				$ 36.94
