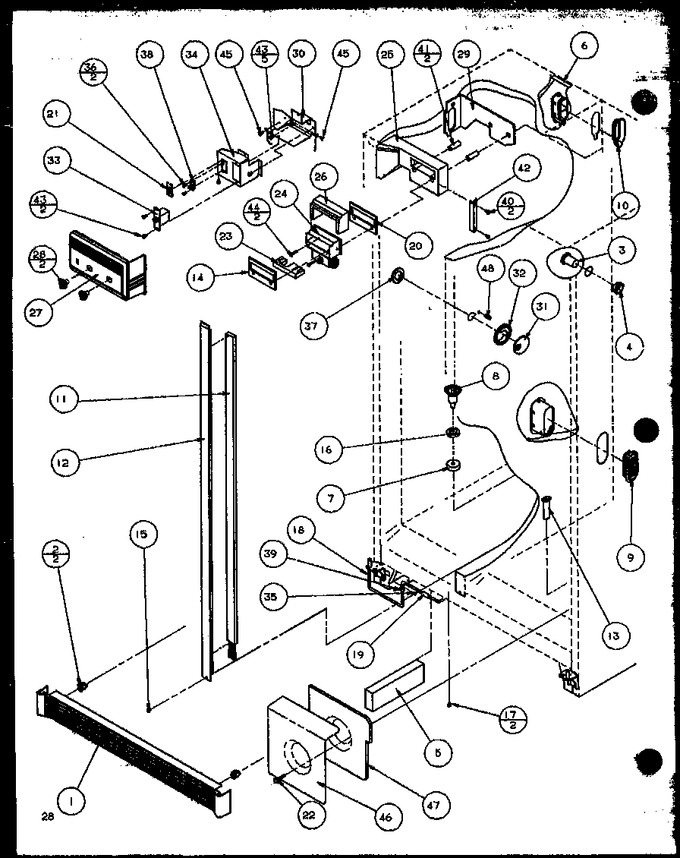

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7786703 | Grille Toe W |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | A3187702 | Tunnel, Air |
|
- | |||||
| 4 | A3187801 | Retainer |
|
- | |||||
| 5 | B5629045 | Insulation |
|
- | |||||
| 6 | B5705320 | Tubing, Plastic (wtr Tank/do |
|
- | |||||
| 7 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.41 | |||||
| 8 | W10815413 | Funnel, Drain (Replaces: D7753901) |
|
Immediately | $ 49.05 | ||||
| 9 | D7785401 | Grille-rtn Air |
|
- | |||||
| 10 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 11 | D7837501 | Heater, Mullion |
|
- | |||||
| 12 | D7788602 | Mullion,vert-white E Ct |
|
- | |||||
| 12 | D7788606 | L Vt Mull-pnt |
|
- | |||||
| 13 | D7793501 | Grommet |
|
- | |||||
| 14 | 10383201 | Gasket, Damper |
|
- | |||||
| 15 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 12.83 | |||||
| 16 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 10.92 | |||||
| 17 | M0580007 | Grommet, Screw |
|
- | |||||
| 18 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 12.43 | |||||
| 19 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 77.35 | |||||
| 20 | B8345401 | Gasket, Damper |
|
- | |||||
| 21 | B8391602 | Collar, Switch |
|
- | |||||
| 22 | C6457701 | Clip K |
|
- | |||||
| 23 | C8902601 | Insert, Control |
|
- | |||||
| 24 | D7547408 | Control, Damper |
|
- | |||||
| 24 | D7547407 | Control, Damper |
|
- | |||||
| 25 | 10176602 | Air Duct, Waxed |
|
- | |||||
| 26 | D7788201 | Insulation |
|
- | |||||
| 27 | D7790324 | Cover Cont |
|
- | |||||
| 28 | D7795806 | Kit Knob |
|
- | |||||
| 29 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 30 | D7822402 | Box, Bottom Control |
|
- | |||||
| 33 | R0161092 | Control-temp (Replaces: C3615024) |
|
$ 216.18 | |||||
| 34 | D7868601 | Box Control Top |
|
- | |||||
| 35 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.82 | ||||
| 36 | M0234003 | Screw |
|
- | |||||
| 38 | M0342601 | Switch, Heater |
|
- | |||||
| 39 | M0102301 | Clamp |
|
- | |||||
| 40 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.97 | ||||
| 41 | A3044208 | Spacer Damper |
|
- | |||||
| 42 | C8977301 | Clamp |
|
- | |||||
| 43 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.83 | ||||
| 44 | M0216539 | Screw |
|
- | |||||
| 45 | WP489399 | Screw (Replaces: M0232903) |
|
$ 6.95 | |||||
| 46 | D7879301 | Cover, Tank |
|
- | |||||
| 47 | D7793402 | Insulation Cut Tank |
|
- |
