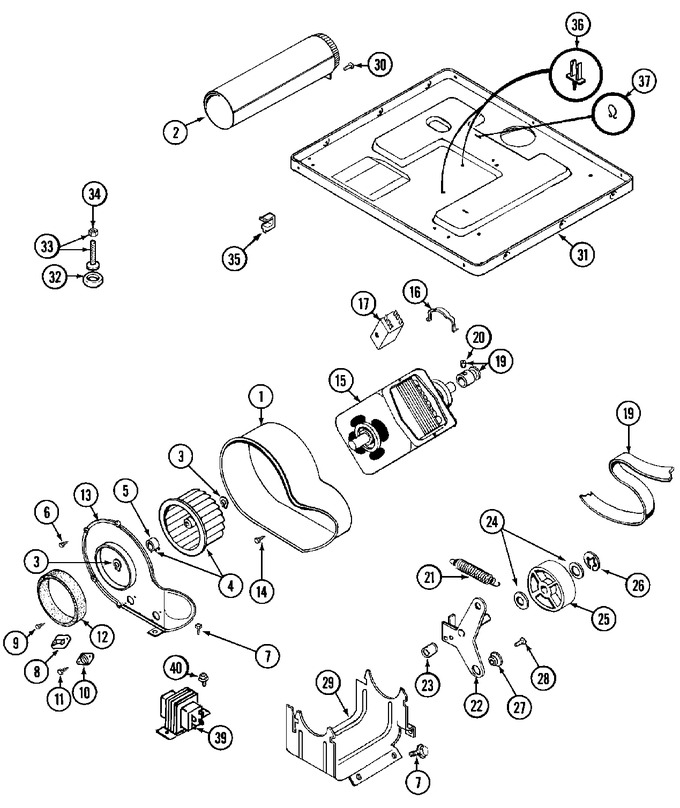

08 - Motor Drive
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y312893 | Housing, Blower | 10 |
|
$ 55.67 | ||||
| 002 | Y303442 | Exhaust Duct Assembly | 10 |
|
- | ||||
| 003 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 4.23 | |||
| 004 | Y303836 | Blower Wheel Assembly | 10 |
|
Immediately | $ 35.94 | |||
| 005 | WP312967 | Clamp, Blower Wheel (Replaces: 312967) | 10 |
|
Immediately | $ 11.87 | |||
| 006 | WPW10116751 | Screw, Housing Cover (Replaces: Y312961) | 10 |
|
$ 7.49 | ||||
| 007 | Y313561 | Screw, Housing Cover | 10 |
|
$ 5.27 | ||||
| 008 | 306056 | Thermistor Temp Control | 10 |
|
$ 39.41 | ||||
| 008 | WP33303391 | Thermostat, Cycling (155 Deg) (Replaces: Y303391) | 10 |
|
$ 141.11 | ||||
| 009 | WP90767 | Screw, Thermostat (Replaces: 211294) | 10 |
|
Immediately | $ 7.82 | |||
| 010 | WP306604 | Cut-off, Thermal (Replaces: 306604) | 10 |
|
Immediately | $ 41.97 | |||
| 011 | NLA | Screw, Thermal Cut-off | 10 |
|
- | ||||
| 012 | WPY312901 | Seal, Housing Cover (Replaces: Y312901) | 10 |
|
$ 67.44 | ||||
| 013 | 314778 | Cover, Blower Housing | 10 |
|
- | ||||
| 014 | 314818 | Screw, Blower Housing | 10 |
|
- | ||||
| 015 | W10410999 | Motor (Replaces: Y303358) | 10 |
|
Immediately | $ 184.78 | |||
| 016 | WPY015825 | Clip, Motor (Replaces: Y015825) | 10 |
|
$ 23.37 | ||||
| 017 | 306207 | (prod. No. 303358-8 & 303358-9) |
|
- | |||||
| 017 | NLA | Switch, Motor External Start | 10 |
|
- | ||||
| 017 | Y303877 | Switch, Motor External Start (no.303358-2, 303358-4,303358-7) | 10 |
|
- | ||||
| 017 | Y303879 | Switch, Motor External Start (prod. No. 303358 & 303358-6) | 10 |
|
- | ||||
| 018 | WPY312959 | Belt, Tumbler & Motor (Replaces: Y312959) | 10 |
|
Immediately | $ 34.07 | |||
| 019 | Y305185 | Pulley, Motor (w/set Screw) | 10 |
|
- | ||||
| 020 | Y053241 | Screw, Set | 10 |
|
- | ||||
| 021 | Y303945 | Idler Spring Assembly | 10 |
|
- | ||||
| 022 | WP6-3033630 | Idler Arm & Shaft Assembly (Replaces: Y303363) | 10 |
|
Immediately | $ 76.03 | |||
| 023 | WPW10116756 | Spacer, Idler Bracket (Replaces: Y313582) | 10 |
|
$ 48.56 | ||||
| 024 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 10 |
|
Immediately | $ 11.12 | |||
| 025 | WP6-3037050 | Pulley, Idler (Replaces: Y303705) | 10 |
|
Immediately | $ 22.10 | |||
| 026 | WP354987 | Ring, Retaining (Replaces: 312958) | 10 |
|
Immediately | $ 11.75 | |||
| 027 | WP315772 | Sleeve, Idler Arm ----s (Replaces: Y312894) | 10 |
|
$ 11.54 | ||||
| 028 | WPY014874 | Screw, Idler Arm (Replaces: Y014874) | 10 |
|
$ 7.75 | ||||
| 029 | NLA | Support, Motor | 10 |
|
- | ||||
| 030 | Y310632 | Screw, Exhaust Duct | 10 |
|
- | ||||
| 031 | Y305084 | Base Assembly | 10 |
|
- | ||||
| 032 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 033 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.95 | ||||
| 034 | WP62739 | Nut, Leg (Replaces: Y052740) | 10 |
|
$ 7.61 | ||||
| 035 | Y310376 | Clip, Cable | 10 |
|
- | ||||
| 036 | 315471 | Retainer, Wire | 10 |
|
- | ||||
| 037 | 410490 | Spring, Wire Harness | 10 |
|
- | ||||
| 038 | WPW10116751 | Screw, Spacer (Replaces: Y312961) | 10 |
|
$ 7.49 | ||||
| 039 | 306199 | Relay, Heater | 10 |
|
$ 42.40 | ||||
| 040 | WP3177991 | Screw (Replaces: Y251119) | 10 |
|
Immediately | $ 7.19 |
