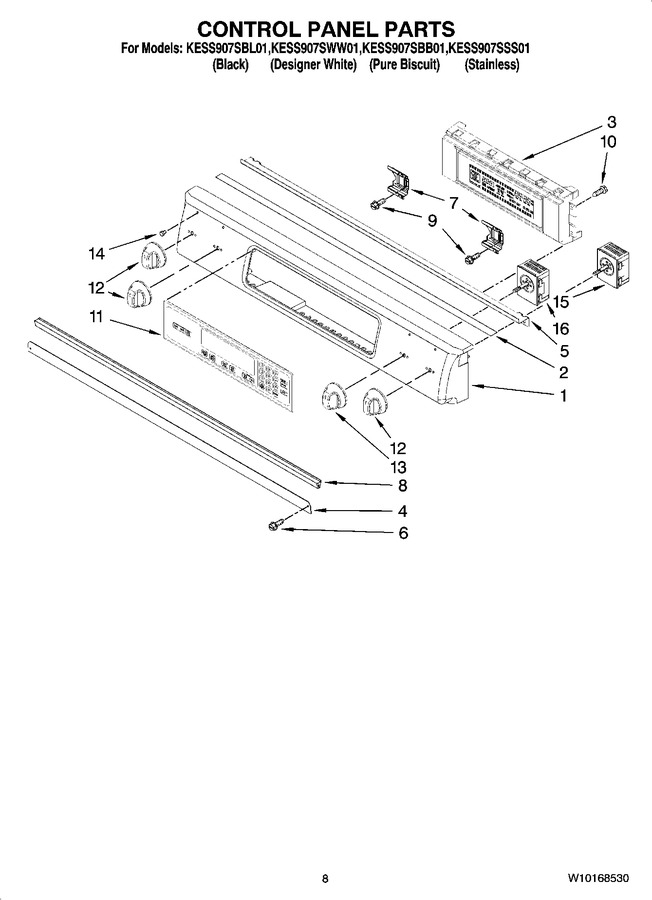

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10117025		Control Panel (black)		Appelez-nous	-
1	W10117027		Control Panel (white)		Appelez-nous	-
1	W10117026		Control Panel (biscuit)		Appelez-nous	-
1	W10156271		Control Panel (stainless)		Appelez-nous	-
2	W10110246		Gasket, Console				$ 123.31
3	W10181439		Control, Electric				$ 483.37
4	W10105370		Shield, Console Vent				$ 69.83
5	W10117524		Bracket, Console				$ 36.94
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
7	9761745		Bracket, Thermostat (2)				$ 40.75
8	W10116195		Gasket, Vent Shield				$ 77.94
9	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
10	9780271		Screw		Appelez-nous	-
11	WP9761566		Membrane, Switch   (Replaces: 9761566)			Immediately	$ 450.25
12	W10130393		Knob, Smart Dual Lf, Lr, Rr (biscuit)				$ 34.30
12	WPW10156260		Knob, Smart Dual Lf, Lr, Rr (stainless)   (Replaces: W10156260)			Immediately	$ 66.63
12	WPW10193255		Knob, Smart Dual Lf, Lr, Rr (black)   (Replaces: W10130391)				$ 30.17
12	WPW10193253		Knob, Smart Dual Lf, Lr, Rr (white)   (Replaces: W10130392)			Immediately	$ 22.04
13	W10130387		Knob, Smart Single Rf (black)		Appelez-nous	-
13	W10156261		Knob, Smart Single Rf (stainless)				$ 16.61
13	W10130389		Knob, Smart Single Rf (biscuit)				$ 16.22
13	WPW10193257		Knob, Smart Single Rf (white)   (Replaces: W10130388)			Immediately	$ 21.78
14	WP3196068		Lens, Indicator Light   (Replaces: 3196068)			Immediately	$ 6.26
15	WP9763762		Duel Switch Lf, Lr, Rr   (Replaces: 9763762)			Immediately	$ 226.29
16	WP9763761		Single Switch Rf   (Replaces: 9763761)			Immediately	$ 218.61
