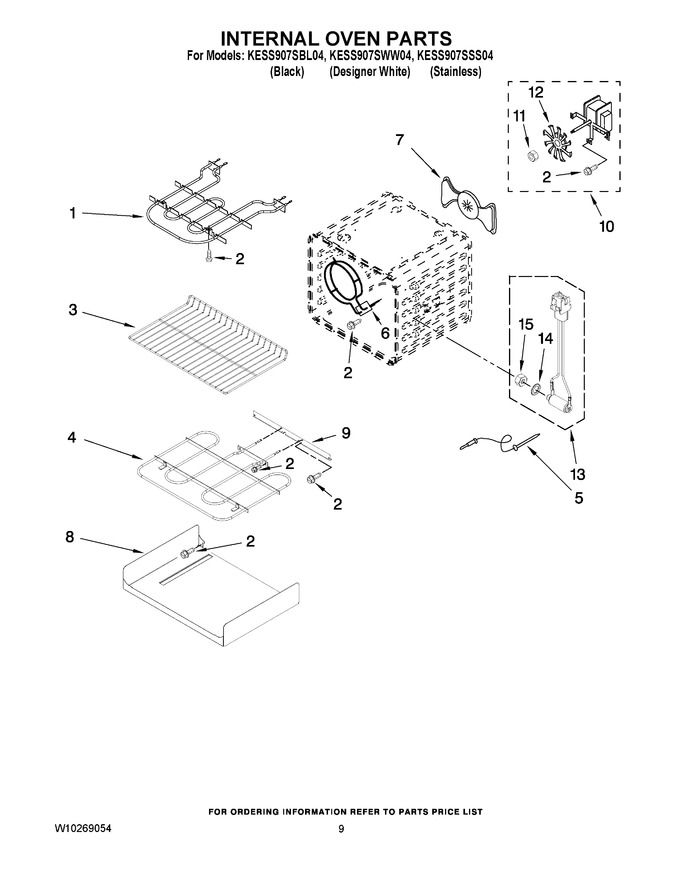

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 229.00 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 3 | WPW10179152 | Oven Rack (Replaces: W10179152) |
|
Immediately | $ 119.61 | ||||
| 4 | WPW10207398 | Bake Element (Replaces: W10207398) |
|
Immediately | $ 133.00 | ||||
| 5 | WP9755542 | Meat Probe (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 6 | WP9760769 | Element, Convection (Replaces: 9760769) |
|
Immediately | $ 337.88 | ||||
| 7 | W10860133 | Baffle (Replaces: W10160868) |
|
$ 256.58 | |||||
| 8 | 4455037 | Tray, Hidden Bake |
|
$ 73.11 | |||||
| 9 | 4450039 | Cover, Bake Tray |
|
$ 92.11 | |||||
| 10 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 11 | WPW10116349 | Acorn Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 12 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 13 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 14 | WP9755547 | Lock Washer (Replaces: 9755547) |
|
$ 6.41 | |||||
| 15 | WP9755546 | Hex Nut (Replaces: 9755546) |
|
$ 7.30 |
