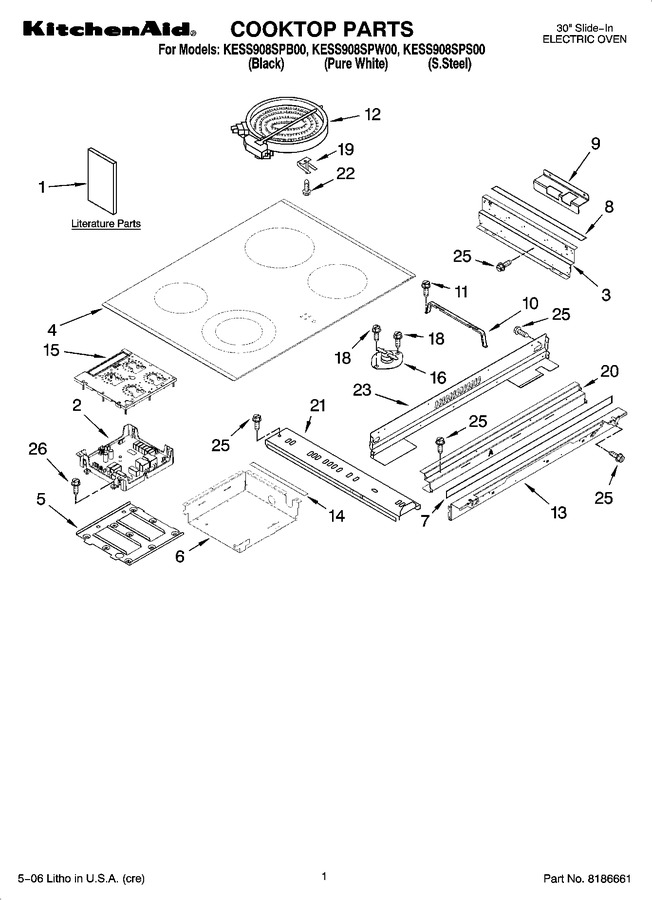

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763467 | Guide Easy Set |
|
- | |||||
| 1 | 9763461 | Installation Instructions |
|
- | |||||
| 1 | W10109440 | Use & Care Guide |
|
- | |||||
| 1 | 9762787 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 8285348 | Central, Appliance |
|
$ 321.25 | |||||
| 3 | 9761422 | Bracket, Mounting |
|
$ 67.87 | |||||
| 4 | 9762790WW | Cooktop (white) |
|
- | |||||
| 4 | 9762790BL | Cooktop (black) |
|
- | |||||
| 5 | 9757815 | Support, Module |
|
$ 43.94 | |||||
| 6 | 9761638 | Box, Touch Control |
|
- | |||||
| 7 | W10076020 | Gasket |
|
$ 50.99 | |||||
| 8 | W10076030 | Gasket |
|
$ 78.51 | |||||
| 9 | 9757686 | Support (l.hand) |
|
$ 38.48 | |||||
| 9 | 9757687 | Support (r.hand) |
|
$ 38.36 | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 12 | 4453908 | Element, Surface (lf) |
|
$ 155.12 | |||||
| 12 | WP4453907 | Element, Surface (cf) (Replaces: 4453907) |
|
Immediately | $ 299.00 | ||||
| 12 | W10203295 | Element, Surface (lr) (Replaces: 8285232) |
|
$ 333.25 | |||||
| 12 | 4453910 | Element, Surface (rr) |
|
$ 142.33 | |||||
| 13 | 9761423 | Bracket, Front Support |
|
$ 43.33 | |||||
| 14 | 9761663 | Seal, Heat |
|
$ 56.53 | |||||
| 15 | WP9757063 | Board, Control (Replaces: 9757063) |
|
Immediately | $ 437.49 | ||||
| 16 | WP9759944 | Thrmstat, 60c Spst (Replaces: 9759944) |
|
Immediately | $ 135.08 | ||||
| 18 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 19 | 9759094 | Spring, Locator |
|
$ 7.39 | |||||
| 20 | 9761768 | Bracket, Rear Sprt |
|
$ 73.35 | |||||
| 21 | 9757825 | Rail, Element (center (1)) |
|
- | |||||
| 21 | 9757824 | Rail, Element (side (2)) |
|
$ 60.29 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 8.01 | |||||
| 23 | 9761723 | Cover, Cktp Rear |
|
$ 65.23 | |||||
| 25 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 26 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 |
