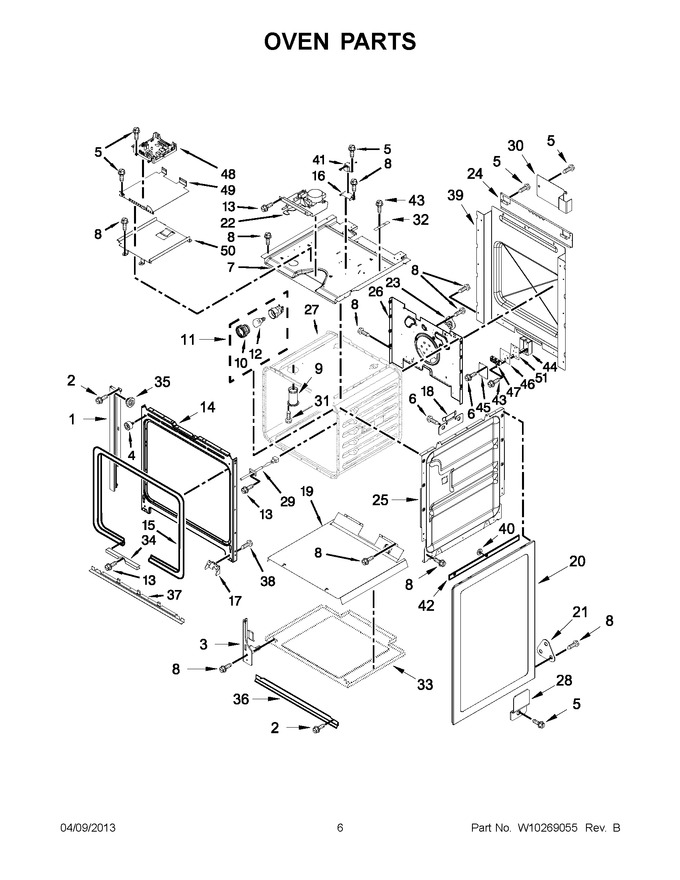

03 - Oven Parts


04 - Internal Oven Parts


05 - Top Venting Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140547		Trim, Side (stainless (left))				$ 20.43
1	W10109540		Trim, Side (black (right))		Appelez-nous	-
1	W10109570		Trim, Side (white (right))				$ 35.20
1	W10140548		Trim, Side (stainless (right))				$ 37.10
1	W10109490		Trim, Side (black (left))				$ 35.09
1	W10109520		Trim, Side (white (left))				$ 37.28
2	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper & Screw				$ 7.41
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
7	8303099		Chassis, Top				$ 70.97
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 54.49
13	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 74.56
16	9757829		Bracket, Transformer		Appelez-nous	-
17	4452152		Bracket, Bottom Vent				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	4451478		Support, Insulation				$ 54.10
20	9760723PB		Body, Side Black		Appelez-nous	-
20	9760723PW		Body, Side (white)		Appelez-nous	-
21	9757461		Bracket,side Panel				$ 37.11
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 333.71
23	WP9759242		Thermostat, Thermal Overload   (Replaces: 9759242)			Immediately	$ 85.57
24	9757811		Brace, Side Panel		Appelez-nous	-
25	W10782197		Side, Panel   (Replaces: 4455641)				$ 150.69
26	9759761		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	9759890		Clip, Side Panel				$ 9.71
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 105.00
30	9759945		Standoff, Rear				$ 58.51
31	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
32	9759885		Insulation, Pad		Appelez-nous	-
33	N/P		Base, Chassis (not Serviceable)		Appelez-nous	-
34	WP4448933		Gasket, Retainer   (Replaces: 4448933)				$ 9.30
35	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
36	W10116899		Vent, Bottom Upper (black)				$ 20.51
36	W10140533		Vent, Bottom Upper (stainless)		Appelez-nous	-
36	W10116897		Vent, Bottom Upper (white)				$ 21.11
37	W10153488		Vent, Bottom Lower (white)				$ 36.15
37	W10160347		Vent, Bottom Lower (stainless)				$ 69.48
37	W10153486		Vent, Bottom Lower (black)				$ 62.57
38	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
39	9758583		Cover, Back				$ 215.30
40	9760481		Washer		Appelez-nous	-
41	WPW10111628		Transformer, Control   (Replaces: W10111628)				$ 297.39
42	9759722		Insulation, Body Side Trim				$ 33.40
43	W11684512		Screw   (Replaces: 3400080)				$ 14.81
44	W10115858		Box, Terminal   (Replaces: W10165135)				$ 122.00
45	9757405		Cover, Terminal Box				$ 43.66
46	9759721		Insulator, Terminal Box		Appelez-nous	-
47	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
48	8285348		Manager, Appliance				$ 321.25
49	W10083460		Slide, Global Oven Control		Appelez-nous	-
50	9756454		Bracket, Appliance Manager				$ 68.50
51	9759884		Insulator,term Box		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	9756817		Insulation, Wrap				$ 76.03
NI	9756470		Insulation, Back				$ 68.08
