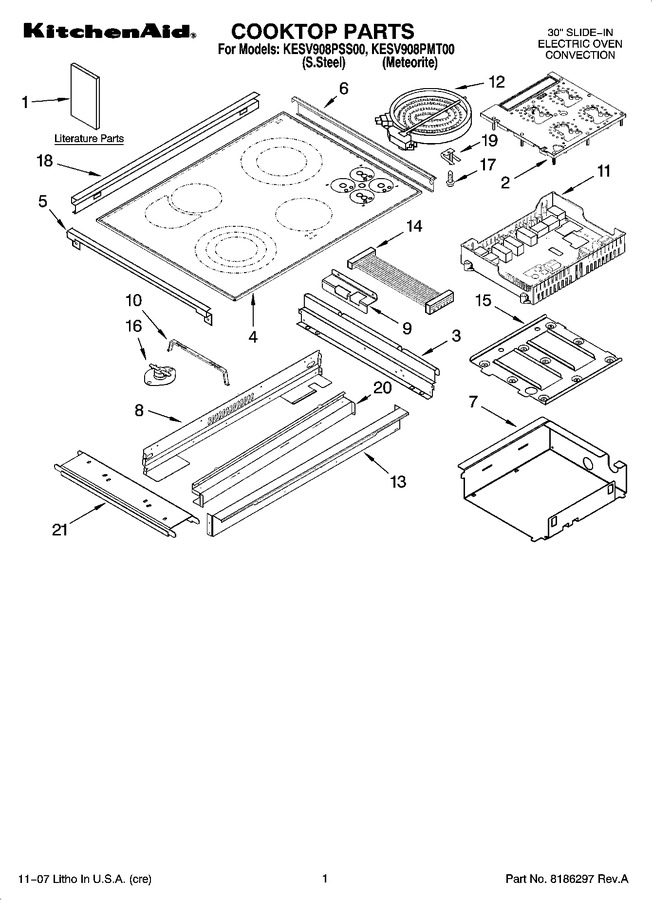

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757451 | Use & Care Guide |
|
- | |||||
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 9761719 | Tech Sheet |
|
- | |||||
| 1 | 9757446 | Installation Instructions |
|
- | |||||
| 2 | WP9757063 | Board, Control (Replaces: 9757063) |
|
Immediately | $ 437.49 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | 4454023 | Bracket, Mounting |
|
- | |||||
| 4 | 9758292SS | Cooktop (s.steel) |
|
$ 402.61 | |||||
| 4 | 9756450 | Gasket |
|
$ 107.73 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 5 | 4453764 | Clip, Ceran (2) |
|
- | |||||
| 6 | 9759530MT | Trim-cktop, Si (meteorite Rh) |
|
- | |||||
| 6 | 9759531SS | Trim-cktop, Si (s.steel Lh) |
|
- | |||||
| 6 | 9759531MT | Trim-cktop, Si (meteorite Lh) |
|
- | |||||
| 6 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 6 | 9759530SS | Trim-cktop, Si (s.steel Rh) |
|
- | |||||
| 7 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 7 | 9757814 | Box, Touch Control |
|
- | |||||
| 8 | WP3196557 | Screw (4) (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 8 | 9761723 | Cover, Cktp Rear |
|
$ 65.23 | |||||
| 9 | 9757687 | Support (r.hand) |
|
$ 38.36 | |||||
| 9 | 9757686 | Support (l.hand) |
|
$ 38.48 | |||||
| 10 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | 9756699 | Seal, Foam |
|
- | |||||
| 11 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 11 | 8285348 | Board, Control |
|
$ 321.25 | |||||
| 12 | 4453910 | Element, Surface (1900/950w (rr)) |
|
$ 142.33 | |||||
| 12 | W10203295 | Element, Surface (1800/1000w (lr)) (Replaces: 8285232) |
|
$ 333.25 | |||||
| 12 | WP4453907 | Element, Surface (1500w (lf)) (Replaces: 4453907) |
|
Immediately | $ 299.00 | ||||
| 12 | 4453908 | Element, Surface (2300/1600/800w (rf)) |
|
$ 155.12 | |||||
| 13 | WP3196557 | Screw (4) (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 13 | 9757800 | Bracket, Front Support |
|
- | |||||
| 14 | W10155097 | Cable Ass`y (Replaces: 8285319) |
|
$ 87.11 | |||||
| 15 | 9757815 | Support, Module |
|
$ 43.94 | |||||
| 16 | WP9759944 | Thermostat (spst) (60c) (Replaces: 9759944) |
|
Immediately | $ 135.08 | ||||
| 16 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 17 | WP486754 | Screw (Replaces: 486754) |
|
$ 8.01 | |||||
| 18 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 18 | 9760520MT | Trim. Cooktop Rear (meteorite) |
|
- | |||||
| 18 | 9760520SS | Trim. Cooktop Rear (s.steel) |
|
- | |||||
| 19 | 9759094 | Spring, Locator |
|
$ 7.39 | |||||
| 20 | 9759963 | Bracket, Rear Sprt |
|
- | |||||
| 20 | WP3196557 | Screw (4) (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 21 | W10491985 | Screw (4) (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 21 | 9757825 | Rail, Element (2) (center) |
|
- | |||||
| 21 | 9757824 | Rail, Element (2) (side) |
|
$ 60.29 |
